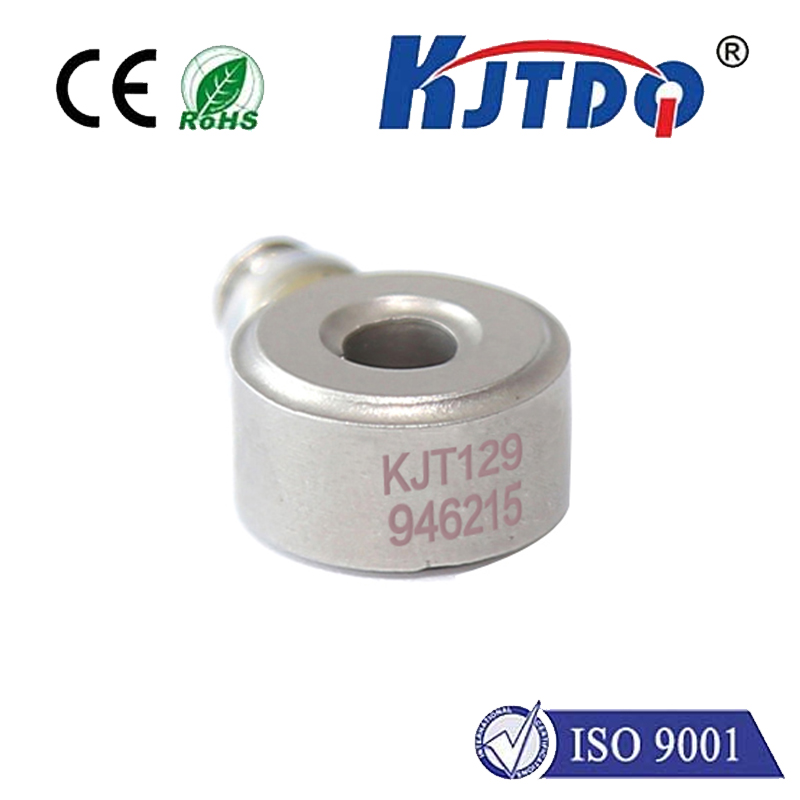

Piezoelectric force sensors are sensors that utilize the piezoelectric effect of piezoelectric materials and use quartz as a sensitive element to convert the measured force into an electrical signal to feel quasi-static force and dynamic force. Rugged construction, long service life, wide usable frequency range and wide dynamic range make it ideal for dynamic force measurement. IEPE circuit can be installed to output voltage signal.
Measuring range | 5KN |
| Sensitivity | 4pc/N |
| Natural frequency | ≥75KHz |
| non-linearity | ≤1% |
| temperature range | -54°C~+121°C |
| Housing material | Stainless Steel |
| Sealing method | Laser welding |
output method | M5 |
| size | φ12.5mm x φ4mm x 7mm |
| weight | 4G |
| Installation method | φ4 Through hole |
| connecting cables | D01 |
