KJT-Z1640 stainless steel digital pressure gauge adopts metal stainless steel shell, beautiful appearance, durable, using two section 5 battery power supply, can be used continuously for more than a year, is a set of pressure, measurement, display as one of the high-precision low-power digital pressure gauge, with anti-vibration, high display accuracy, long service life, automatic standby and so on, easy to use, can be used in place of a mechanical pressure gauge, for portable It can replace the mechanical pressure gauge and be used for portable pressure measurement, equipment supporting, standard pressure calibration equipment, etc. Wide range of applications.
| Type | Product Description | |
| KJT-Z1640 | Digital electric contact pressure gauge | |

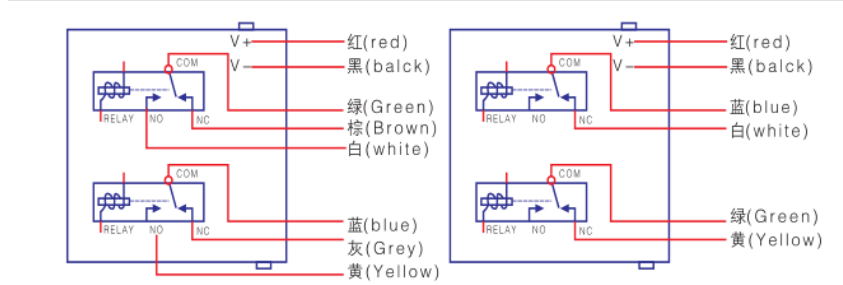

| output method | 1640 | Dual Relay Outputs |
| 2 | Normally open | |
| 3 | NO+NC | |
| Accuracy level | 1 | 1％ |
| 2 | 0.5％ | |
| process connection | A | 20*1.5 |
| B | G1/2 | |
| C | G1/4 | |
| D | Other orders are specified | |
| Power supply | W | DC24V battery powered |
| A | AC220V power supply | |
| B | AC380V power supply | |
| Measuring range | -100kPa-60MPa | Customer Choice |
