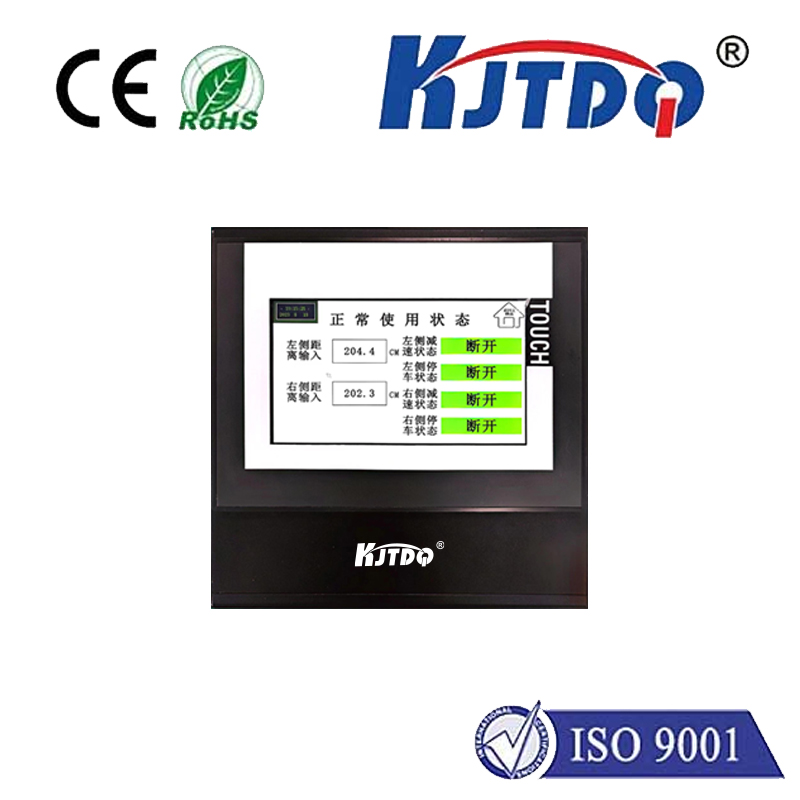

①Controller-Host
The controller function is mainly to process and calculate the signal received by the laser sensor, and make corresponding electromechanical actions (voice alarm and relay control) according to the detected distance.
②Laser rangefinder

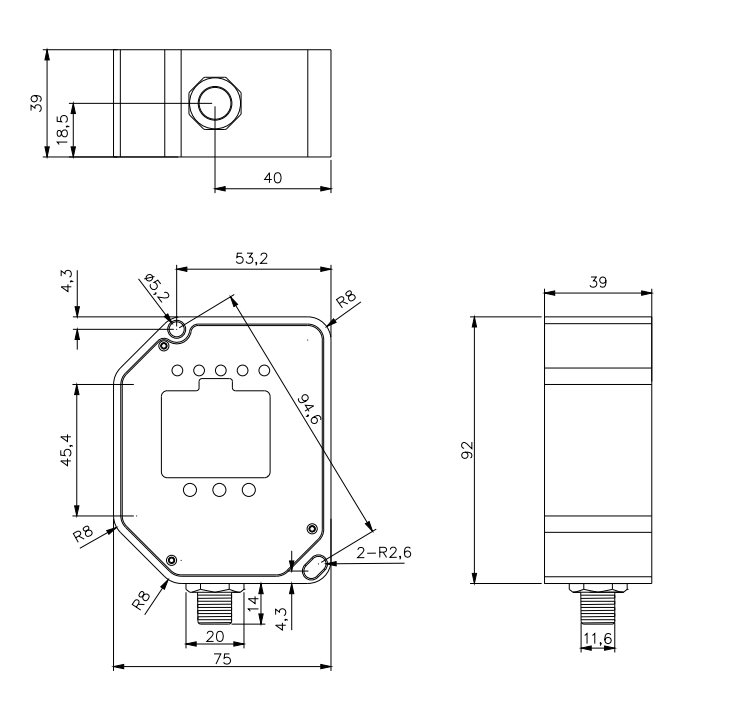

The function of the laser rangefinder is to irradiate the laser beam to the opposite vehicle or reflector and receive the reflected light reflected by the reflected signal. The reflected light is provided to the controller, which calculates the distance from the vehicle to the object being measured through calculation and processing.
③The function of the reflector is to reflect the laser in a directional manner with minimal loss. (Optional)

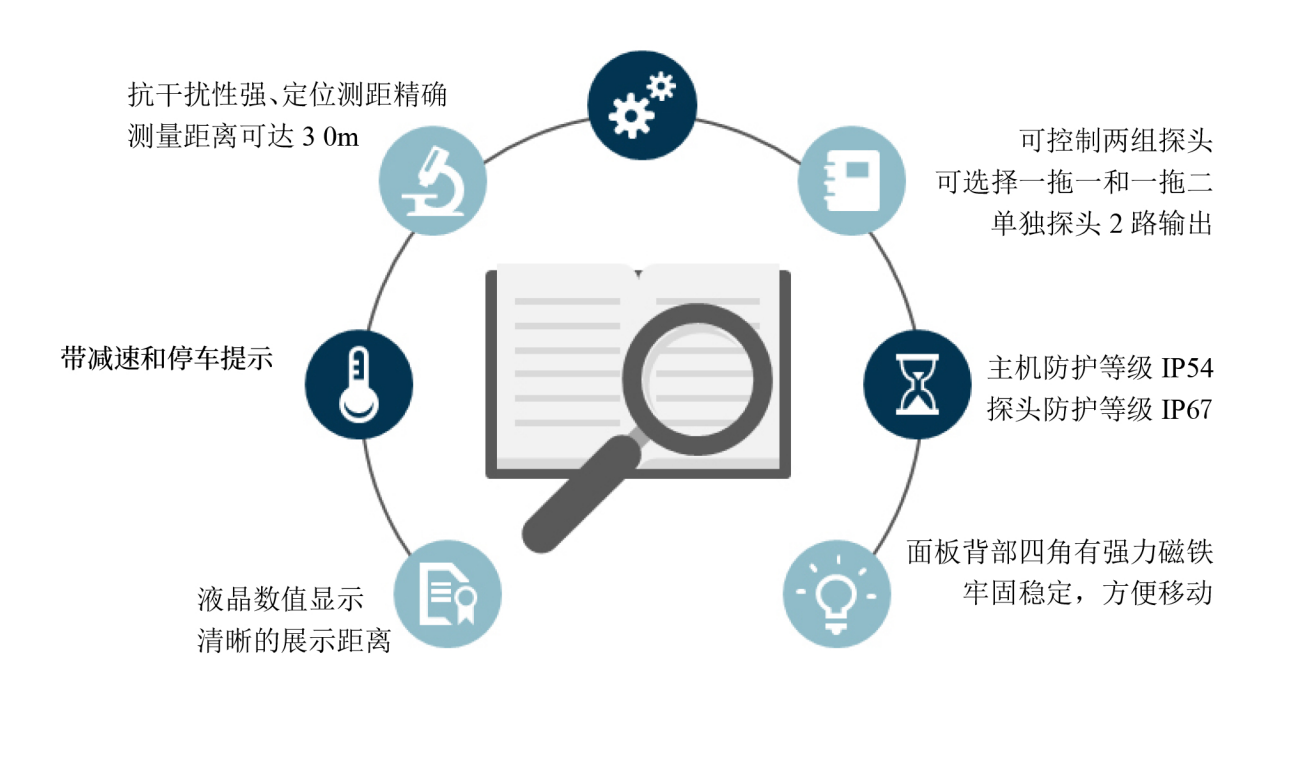

This product is a bidirectional laser sensor with a detection distance of 30 meters (the distance can also be specified by the user). This product supports distance voice prompts, deceleration/stop voice prompts and has four-way relay outputs, which can participate in the automatic control of driving.
| Detection distance | Measuring distance 30M |
| Detection distance error | ≤5% |
| Alarm and output mode | Parking voice alarm and deceleration voice alarm with relay output |
| Alarm intensity | ≥80decibel |
| Operating voltage | AC220V，50HZ |
| Power consumption | ≤100W |
| Operating temperature | -20°C-+60°C |
| Relative humidity | 30%-95% |

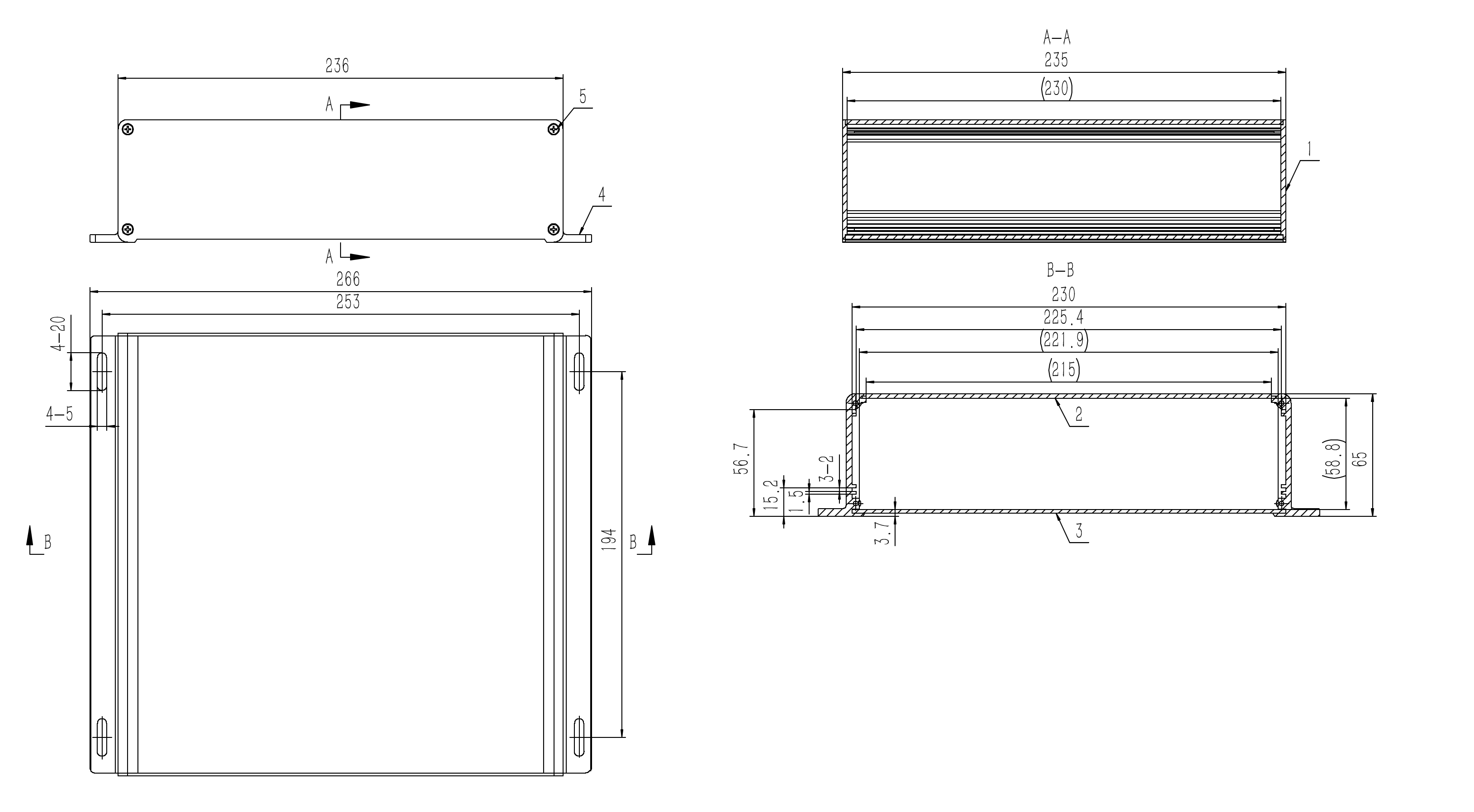

| Dimensions | Controller250*190*92MM |
The anti-collision device of Kaijit overhead crane uses a non-contact laser distance sensor to monitor the distance between vehicles in the same span in real time. If the distance between vehicles is less than the set safety distance, the intelligent control host can slow down and stop the vehicle, thereby effectively avoiding collision accidents and ensuring the safety of people and equipment.

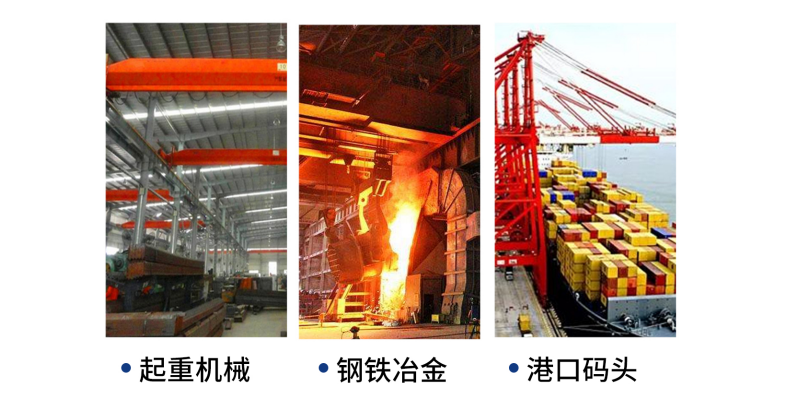

This system is easy to install and debug, and can significantly improve the safe operation of the vehicle. It is an industrial product specially designed and developed for applications in metallurgy and other related industries that require distance measurement and position control.
