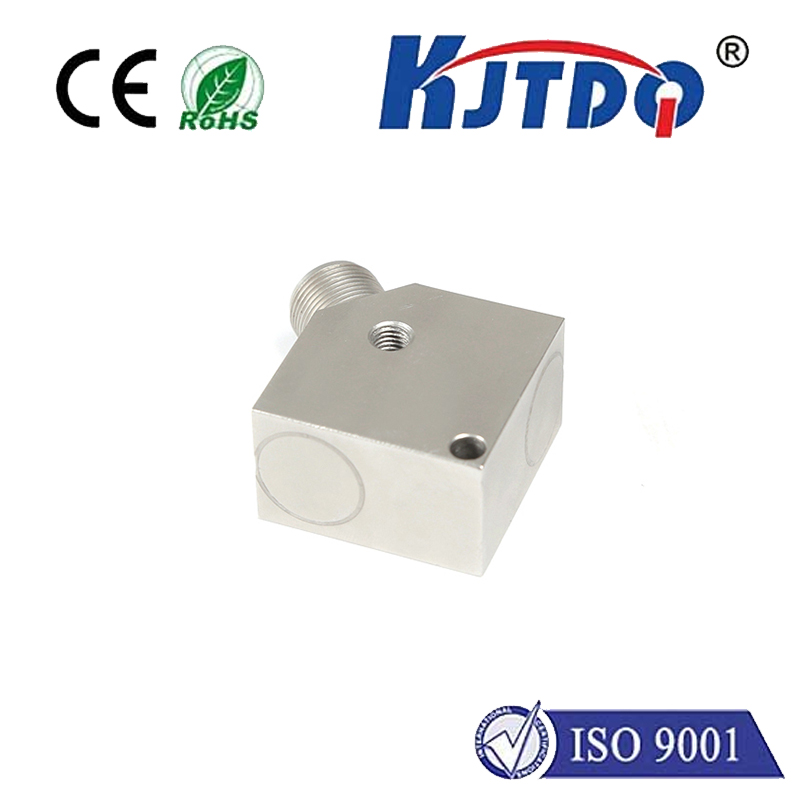

The piezoelectric three-axis integrated vibration speed transmitter is a professional high-precision design based on the piezoelectric acceleration sensor. It has a precision integrating circuit embedded inside and outputs a 4-20mA signal. It can be connected to various general-purpose secondary instruments. Or computer digital collection monitoring system. It can be used to measure absolute vibration speed of equipment failures in industrial fields such as machinery, power generation, steel, metallurgy, chemical industry, rail transit, etc.
★Embedded precision integrating circuit, effective value 4-20mA output
★Used for absolute vibration speed measurement of equipment failure
★Three-way output, can measure X, Y, Z directions simultaneously
| dynamic characteristics | |
Measuring range (peak value) | 0~20mm/sec |
| Current output | 4~20mA |
| Amplitude nonlinearity | <2% |
| Measurement error | ≤5% |
| Frequency response | 5~1,000Hz( +1dB) |
| Lateral sensitivity ratio | ≤5% |
Electrical properties | |
| Supply voltage | 15VDC~30VDC(commonly used 24) |
Environmental characteristics | |
| Operating temperature | -40°C~+85°C |
| Impact limit (peak value) | 1000 g |
| temperature response | See attached picture for temperature curve |
physical properties | |

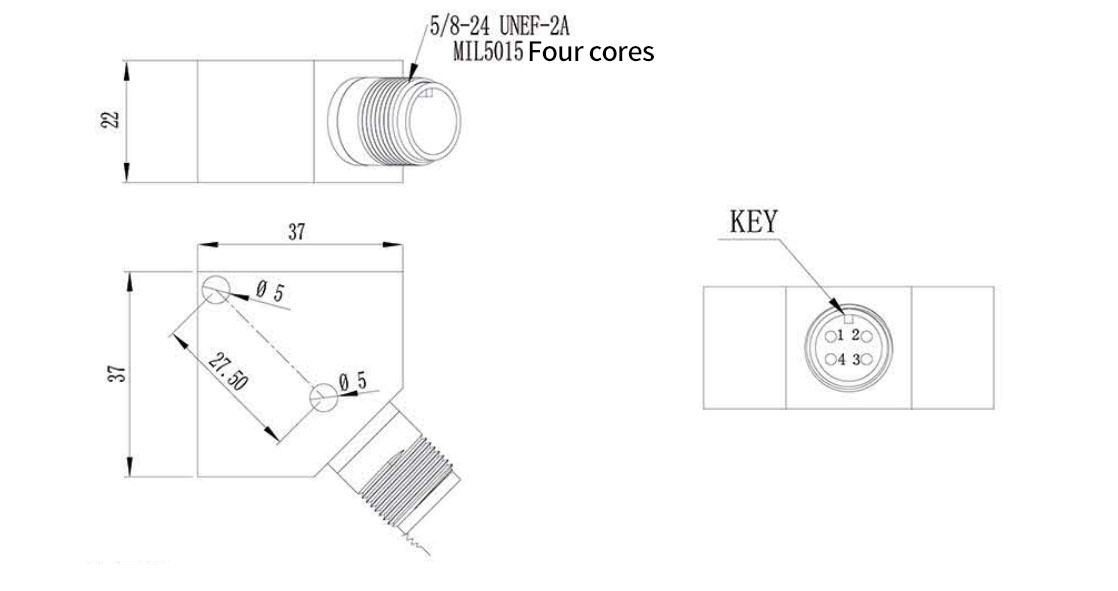

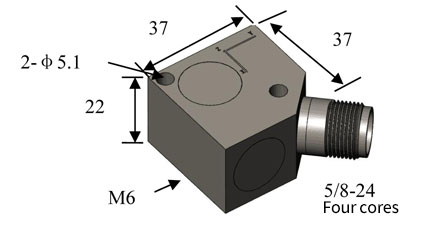

| structure type | CUT |
| Housing material | 304 Stainless Steel |
| output method | 5/8-24Four core socket |
| Installation method | M6 or 2-M5 hexagon socket |
| Protection level | IP65 |
| weight | ~180 g |
| appendix | |
| mounting bolts | M6 or 2-M5 hexagon socket |
| connecting cables | Four-core shielded cable 3 meters |
