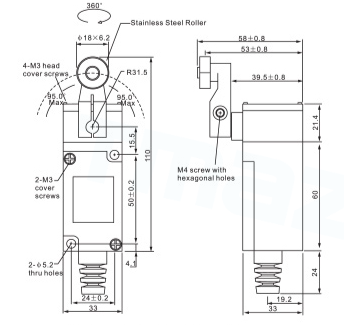

KJT- KA-3205 Double circuit vertical travel Limit switch

Structural features：Double-circuit travel switch, stable and reliable, small in size, economical and practical
Shell material：Made of zinc alloy and reinforced plastic, sturdy structure
Protection level：IP66 protection, waterproof, oil-proof and dust-proof construction
internal structure：The built-in micro switch has a double reed design structure and has a long mechanical life.
Application scenarios：Suitable for drip-proof and splash-proof occasions, such as three-dimensional garages, CNC machine tools, printing machinery, etc.
Quick inquiry

★Double-circuit type travel switch, widely used

★Sturdy structure, composed of zinc alloy and reinforced plastic

★Small size, waterproof and oil-proof

★The built-in micro switch has a double reed structure design and has a longer mechanical life.

★With larger OT actions

★Conduit design for easy wiring

★Many types of actuators, easy to use

Double disconnect mechanical function	INO+INC force disconnect buckle action forced disconnect fast movement
Rated voltage/current Rated voltage/current	10(4)A, 125, 250VAC/6(2)A, 380VAC inductive load, residual φ=0.4
contact resistance contact resistance	Initial <10mΩ, tested <30mΩ
Insulation resistance	500mΩ minimum at 100VDC
Dielectric strength	AC 200VAC/minute between bare metal/terminal, ground and counter pole
Electrical life	500,000 at 10A 250VAC resistive
Mechanical life	20,000,000
operating speed	120 /Minute
Waterproof Or dustproof ability	IP66(Pressure water column level)
rising temperature	At rated voltage/current, up to 30°C over the entire ambient temperature range
standards	CENELEC EN 50041，EN 50047，IEC 337-1，VDE 0660
operating temperature	-25°C~+80°C
storage temperature	-25°C~+80°C
humidity	Maximum 95° relative humidity (no dew)
Impact coefficientImpact resistance	Free position 10G Overtravel position 30G
Vibration frequency	MAX 55Hz
Terminal screw torque	6-8kg method-cm
Other screw torque	Cover 12-14 kg ft cm/head 8-9 kg ft cm/installed 50-60 kg ft/cm
Copper wire size	φ2 max
Cable diameter size	φ9 Maximum value (if using cable IP 66 φ8-9)
