KJT Pole-Disc Type Plastic Multi-Layer Tower Light
- Type ：Rod disc
- Flashing Frequency：63-65 times/min
- Buzzer Volume：>85dB
- Protection Class：IP53 (with buzzer) / IP65 (without buzzer)
Product Overview
Customizable backlit LOGO on the lamp body to highlight brand identity.
Built-in buzzer with a volume of over 85dB.
Imported LED color chips, featuring high brightness, stable performance, and a long service life.
Modular design for easy maintenance; the body can be bent 90 degrees forward and backward.
Parameter | Specification |
Current | Single Color: <50mA; Buzzer: 18mA |
Flashing Frequency | 63-65 times/min |
Buzzer Volume | >85dB |
Protection Class | IP53 (with buzzer) / IP65 (without buzzer) |
Operating Temperature | -20~45℃ (Note: Corrected from "working humidity" as the unit indicates temperature) |
Lamp Lifespan | 50,000h |
Lamp Body Color | Black, Computer Gray, White |
Mounting Method | Screw Fixing |
Material | Lamp Body: ABS; Lampshade: PC; Base: Nylon with Glass Fiber |
Parameter | Specification |

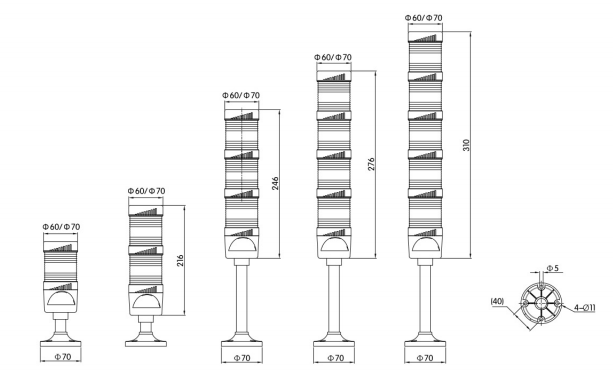

Head Diameter | Φ50mm |
Head Type | None: No Additional Head |
Function | T: Steady On; T: Steady On with Buzzer; W: Flashing; WJ: Flashing with Buzzer; RW: Red Flashing; RWJ: Red Flashing with Buzzer |
LED Voltage | 12V AC/DC, 24V DC, 100-265V AC; Other voltage levels customizable |
RYG Three-Color Integrated | R: Red; Y: Yellow; G: Green |
Mounting Type | Foldable (default model), Side-Mounted, Fixed |
Housing Color | Gray (default model); White, Black, and other colors customizable |

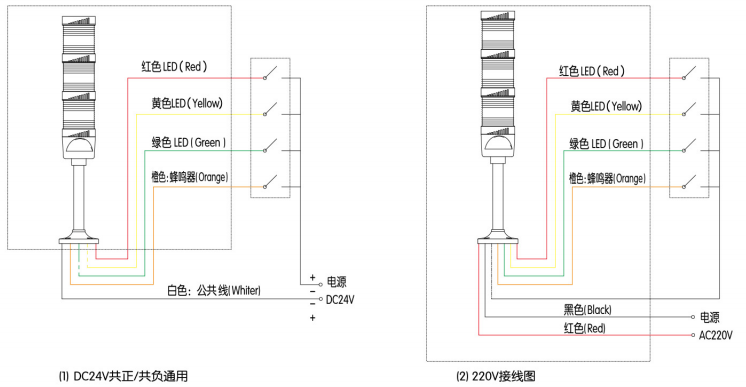

Terminal Type | L: Polarity-Free; C: Contact Type |
