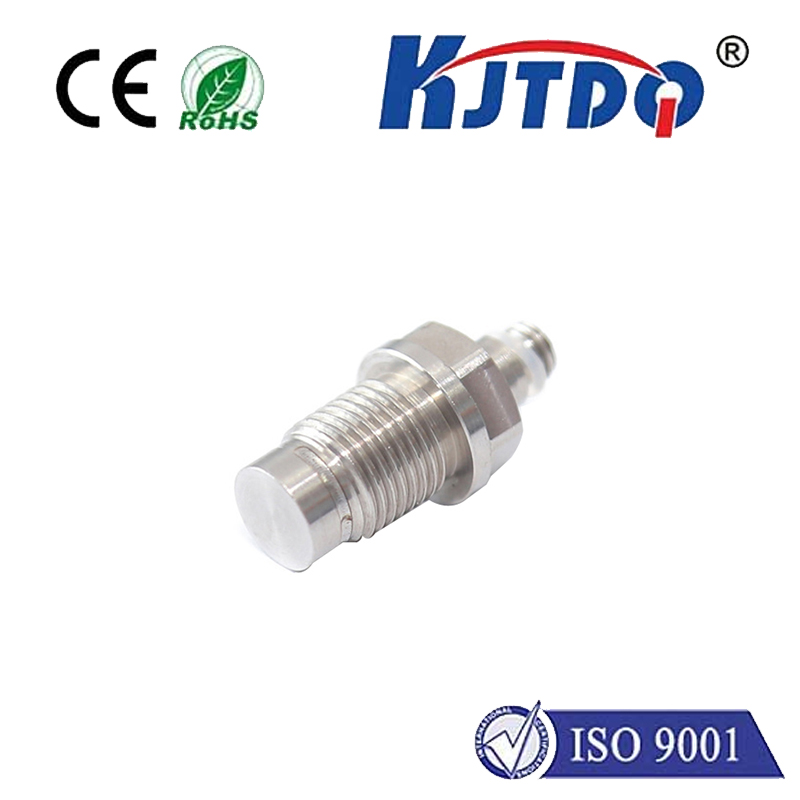

Piezoelectric pressure sensor is a sensor that uses the piezoelectric effect of piezoelectric material to convert the measured pressure into an electrical signal. It has the characteristics of wide frequency range, fast dynamic response, and good temperature characteristics, and is suitable for dynamic pressure testing.
★Pipeline pressure and explosion pressure measurement
★Wide frequency response and high stiffness
★Small size, light weight, easy to install
| static indicator | |
Measuring range (peak value) | 0-30MPa |
Measuring range | 0-30MPa |
| Sensitivity | 100pC/MPa |
| Overload capacity | 120% |
| nonlinear | <1%FS |
Hysteresis | <1%FS |
| Repeatability | <1%FS |
| Insulation resistance | >10^13Ω |
Capacitance (1000Hz) | ~7pF |
| Dynamic indicators | |
Natural frequency | ≥200 kHz |
| Operating temperature | -40°C~+150°C |
Physical parameters | |
Housing material | High strength stainless steel |
| weight | 11 g |
| Install | M10X1 |
| Piezoelectric materials | quartz crystal |
| output method | M5 |
| appendix | |
| Sealing gasket | one |
| Cable | Double-ended M5 low-noise shielded cable 2 meters |
