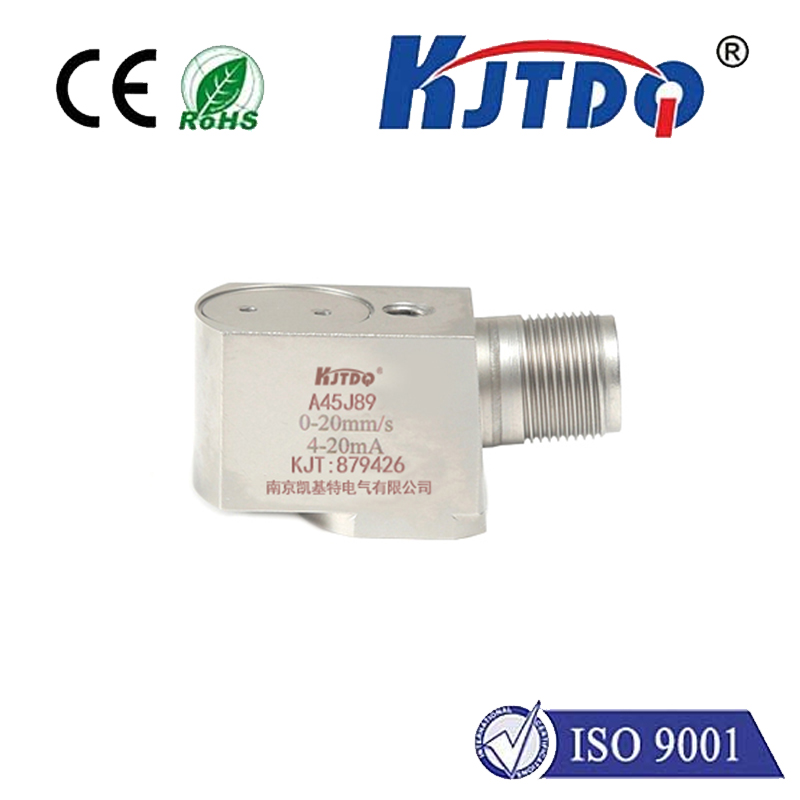

The piezoelectric integrated vibration speed transmitter is a professional high-precision design based on the piezoelectric acceleration sensor, with a precision integrating circuit embedded inside. Suitable for absolute (relative to free surface) vibration of bearing boxes, shells or structures, suitable for various harsh environments in industrial sites.
★Embedded precision integrating circuit, true RMS 4-20mA output
★Used for absolute vibration speed measurement of equipment failure
★Isolated floating, industrial site monitoring, strong anti-interference performance
| Dynamic characteristics | |
Measuring range (peak value) | 0~20mm/sec |
| output | 4~20mA(true valid value) |
| Amplitude nonlinearity | <2% |
| Frequency response | 5~1,000Hz(±1dB) |
| Lateral sensitivity ratio | ≥5% |
Electrical properties | |
| Supply voltage | 15VDC~36VDC |
| Install ground insulation | ≥10^8Ω |
Environmental characteristics | |
| Operating temperature | -40°C~+120°C |
| Impact limit (peak value) | 2000 g |
| temperature response | See attached picture for temperature curve |

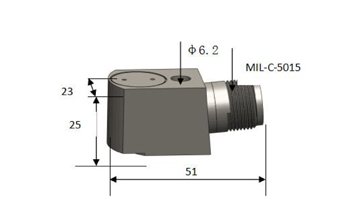

physical properties | |
| structure type | cut |
| Housing material | 304 Stainless Steel |

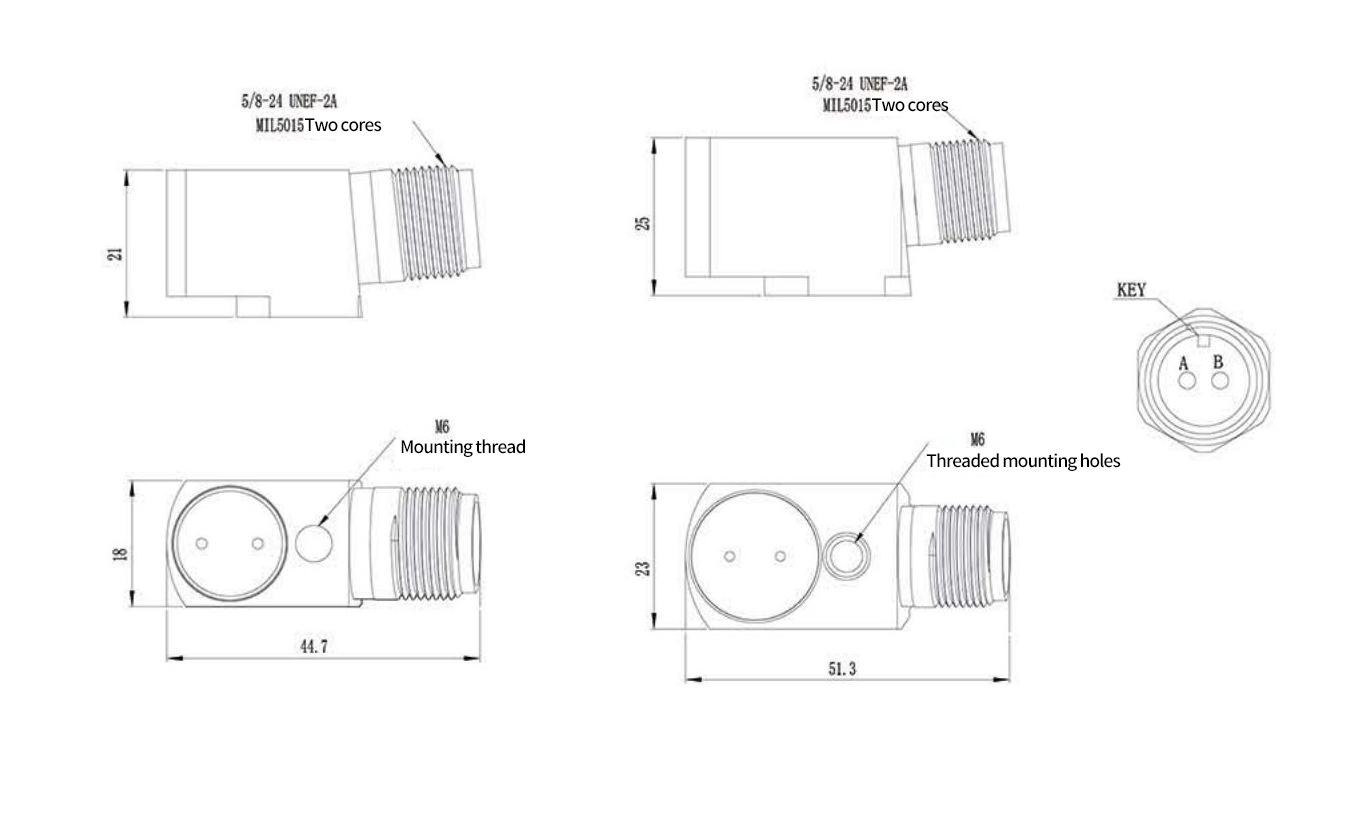

| output method | Side 5/8-24 two-core socket |
| Installation method | M6 |
| Protection level | IP65 |
| weight | ~125G |
| Appendix | |
| mounting bolts | M6 inner hexagon |
| connecting cables | MIL two-core connecting cable (3 meters) |
