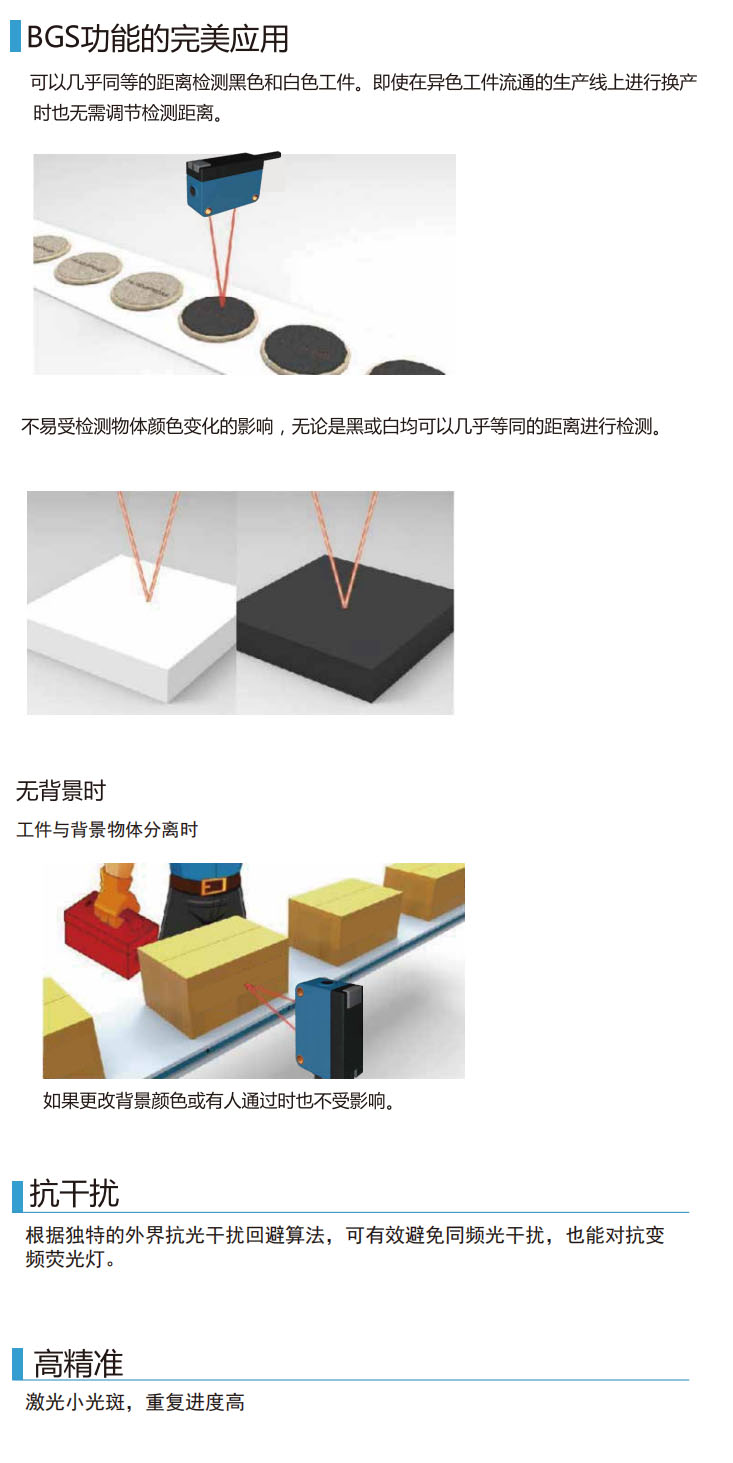

KJT-L61-BG background suppression photoelectric sensor, using photoelectric dedicated IC chip, stable performance; built-in amplifier photoelectric, long detection distance, small light spot attenuation; standard power reverse connection protection, strong anti-interference; detection distance is adjustable, can be customized;
| Detection method | light source | Detection range | NPN Type | PNP Type |
| Distance detection laser | laser | 120mm | KJT-L61-BG | KJT-L61P-BG |
| 300mm | KJT-L62-BG | KJT-L62P-BG | ||
| Red LED | 100mm | KJT-D61-BG | KJT-D61P-BG | |
| 300mm | KJT-D62-BG | KJT-D62P-BG | ||
| 500mm | KJT-D66-BG | KJT-D66P-BG |
| Project/Type | Outlet | ||||
| model | KJT-L61-BG | KJT-L61-BG | KJT-D61-BG | KJT-D62-BG | KJT-D66-BG |
| NPN output | Laser spot 2mm | Laser spot 2mm | Minimum spot size 1mm | Light spot 8-12mm | Collimated spot 8mm |
| Detection distance | 10-120mm | 30-300mm | 5-100mm | 10-600mm (BG function within 250mm) | 10-1500mm (BG function within 500mm) |
| Output Mode | NPN/PNP integrated electrode open circuit, ≤100mA/30V DC | ||||
| Switch mode | L.on (light-incoming action)/D.on (light-blocking action) switchable | ||||
| Indicator Lights | Working indicator light: green, output indicator light: orange | ||||
| Response time | <2ms | ||||
| Sensitivity adjustment | Multi-turn potentiometer | ||||
| light source | Red LED (660nm) | ||||
| Operating voltage | 10~30V DC±10% | ||||
| Current consumption | ≤30mA | ||||
| Ambient light | Daylight: 10000LX or less Incandescent lamp: 3000LX or less | ||||
| Ambient temperature | '-25℃一+55℃ | ||||
| Ambient humidity | '-35%-85% no icing | ||||
| Protection level | IP50 | ||||
| Material | ABS (housing); PC (lens) | ||||
