| Specification | high frequency radar |
| Measuring medium | solid, liquid |
| Measuring range | 0m～70m |

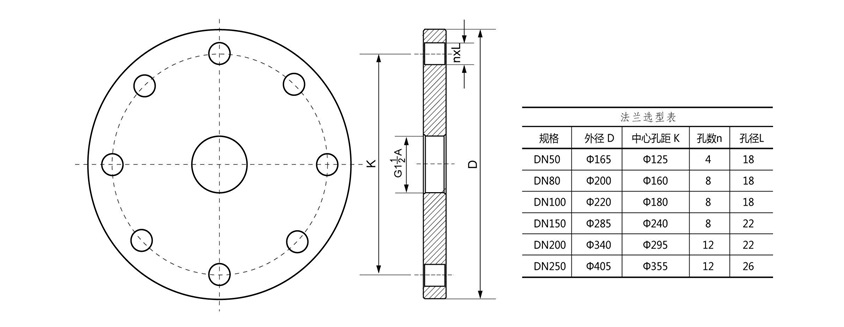

| process connection | Flange, thread |
| Medium temperature | -40℃～250℃ |
| process pressure | -100kPa～4.0MPa |

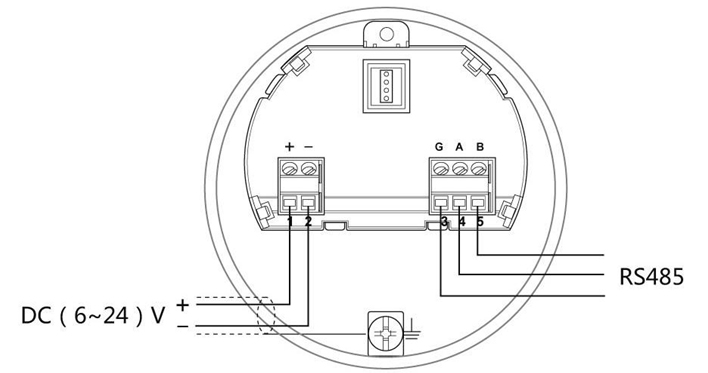

| Signal output | 4mA～20mA DC/HART (two-wire system) RS485/Modbus |
| Live display | Four-digit LCD, programmable |
| Accuracy | ±3mm |
| Repeatability | ±1mm |
| Frequency | 26GHz |

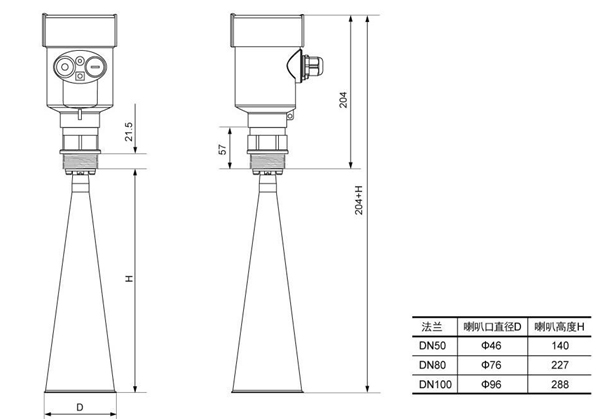

| Antenna | trumpet |

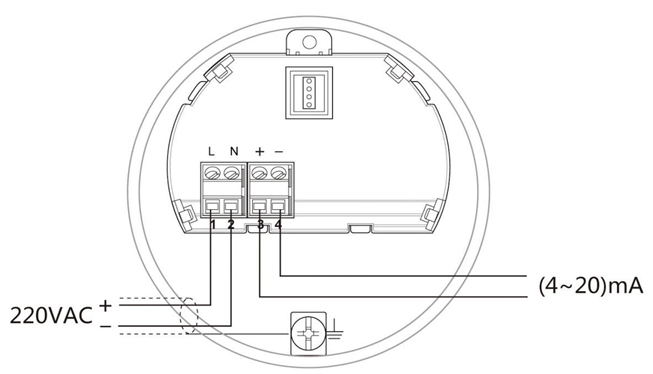

| power | Two-wire system（24V DC） Four-wire system（24V DC/220V AC） |

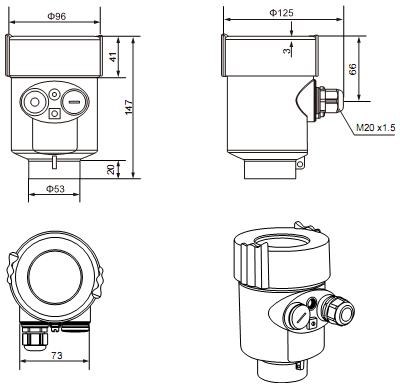

| Shell | Aluminum/Plastic |
| Protection level | IP67 |
| Application | Temperature-resistant, pressure-resistant, slightly corrosive liquid |
Shell | ||
| Seal between housing and housing cover | Silicone Rubber | |
| shell window | polycarbonate | |
| Ground terminal | Stainless steel | |
| Supply voltage | ||

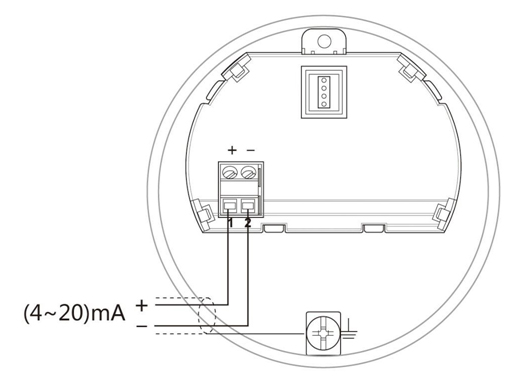

| Two-wire system | Standard type | (16～26) V DC |
| Intrinsically safe | (21. 6～26. 4) V DC | |
| Power consumption | max 22.5mA / 1W | |
| Allow ripple | ||
| -<100Hz | Uss < lV | |
| -(100～100K) Hz | Uss < l0mV | |
| Cable parameters | ||
| Cable entry/plug | 1x M20xl.5 cable entry | |
| 1 blind plug M20xl.5 | ||
| Terminals | Conductor cross section 2.5mm² | |
| Output parameters | ||
| output signal | (4～2 0) mA | |
| Protocol | HLET | |
| resolution | 1. 6μA | |
| Fault signal | Current output remains unchanged; | |
| 20.5mA | ||
| 22mA； | ||
| 3.9mA | ||
| Integration time | (0～50)s，Adjustable | |
| blind area | Antenna end | |
| Maximum measuring distance | 80米 | |
| microwave frequency | 6GHz/26GHz/500M-1.8GHz | |
| Communication Interface | HLET communication protocol | |
| Measurement interval | Approximately 1 second (depends on parameter settings) | |
| Adjust the time | Approximately 1 second (depends on parameter settings) | |
| display resolution | 1mm | |
| Working storage and transport temperature | (-40～100) ℃ | |
| Process temperature (temperature of the antenna section) | (-40～250)℃ | |
| pressure | Max. 4MPa | |
| Earthquake resistant | Mechanical vibration l0m/s², (10～150)Hz | |
