Kaijit photoelectric speed sensor is a multi-functional photoelectric speed sensor product independently developed and produced. It integrates photoelectric conversion circuit, amplification circuit, logic processing circuit and drive output circuit. Compared with similar foreign products, it has the advantages of more functions and low price. Compared with similar domestic products, it has the characteristics of fast response, high precision and stable quality. Suitable for robots, automated production lines, lathes, manipulators and robotic arm components, food processing equipment, printing equipment and other industrial machinery and equipment.
Technical parameter | |||

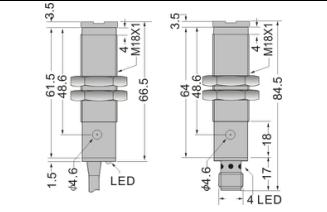

Model | M18*61.5 | ||
Diffuse Reflection | 30cm | 1m | 2m |
Retro Reflection | 50cm | 1.5m | 5m |
through beam | 70cm | 2m | 10m |
| Operating voltage | 12-24VDC/90-250VAC | ||
| Light Source | Infrared Led(880nm) | ||
Output | NPN PNP AC (second line) | ||
Consumption current | ≤25mA | ||
Response time | ≤1ms | ||
| Return difference | 5…20% | ||
| Voltage drop | ≤2.5V | ||
| Repeat accuracy | ≤5% | ||
| Output instructions | Yellow LED | ||
| Protection circuit | Surge, reverse polarity, short circuit protection | ||
| Operating temperature | -15°C- 55°C | ||
| Environment humidity | 35 to 95% RH | ||
| Shell material | PC/ABS | ||
| Wiring | 2M PVC cable | ||
| Protection level | IP67 | ||
