KJT Belt Stall Monitor (contact type)
KJT Belt Stall Monitor (contact type)

KJT Belt Stall Monitor (contact type)

  • Product Series：KJT belt stall monitor (contact type)
  • Load current：AC380V 5A，DC24V 5A
  • Contact method：NO1/NC1
  • Speed range：0.5-5.0m/s
  • Appliance life：＞100,000 times
  • Protection class ：IP65/IP67
  • Quick inquiry

主要技术参数

Operating VoltageAC380V 5A，DC24V 5A
Contact ratingnon-inductive load
Working temperature-40℃-+60℃
Detection methodContact photoelectric type
Output contactNormally open or normally closed
Examination range0.5-5.0m/s (DIP switch adjustment)
Protection level IP65/IP67
CommunicationRS-485 address encoding terminal (user optional)
Communication distance1.2 kilometers for 6-core twisted pair, 50 kilometers for optical cable

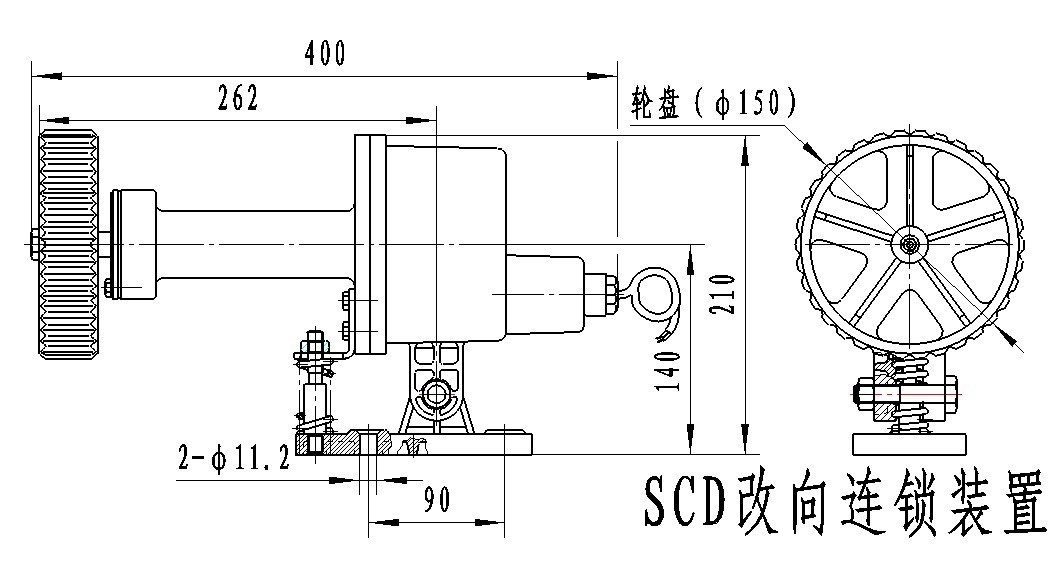

尺寸图88

f85861ea63038614d36f58cc6993550



4

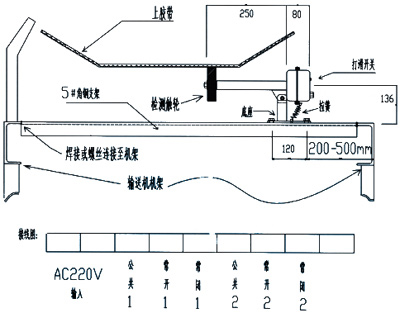

输送带开关应用场景图
