English
Model | Sensor detection box |
| Detection type | NPN/PNP/DC 2Wire |
| Examination range | DC9-36V |
| output voltage | 12V |
| Output current | 200mA |
| battery capacity | 1500mAh |
| Charging time | 5H |
Weight | 200g |

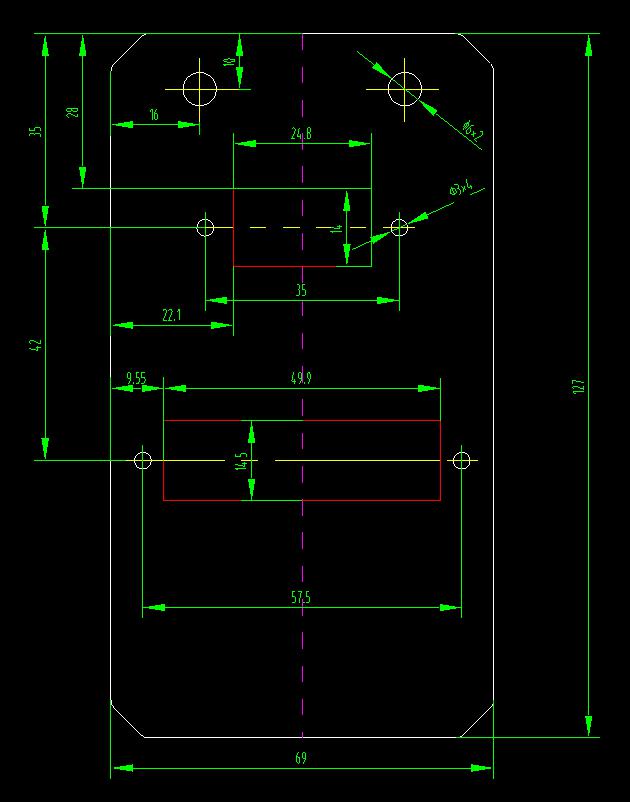

bottom

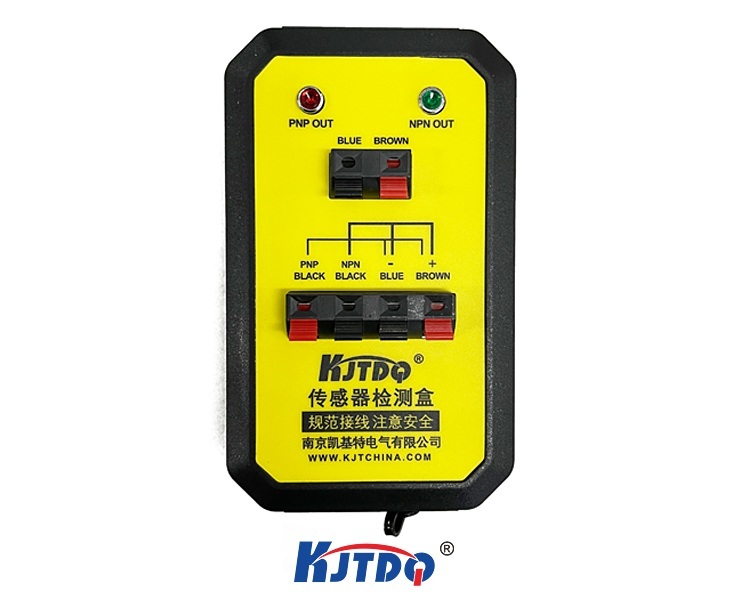

front

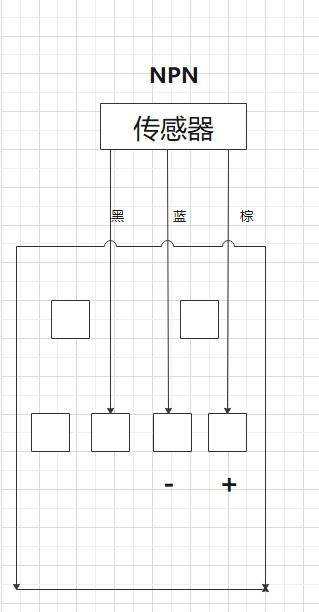

1、NPN
Connect the terminals with corresponding functions, turn on the power, and the green light on the right side will light up and there will be a "beep" sound!

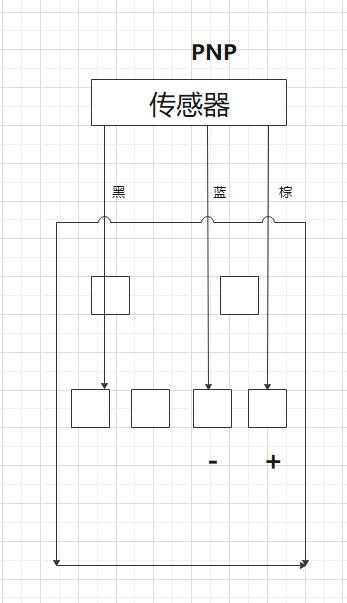

2、PNP
Connect the terminals with corresponding functions, turn on the power and the red light on the left side will light up and there will be a "beep" sound!

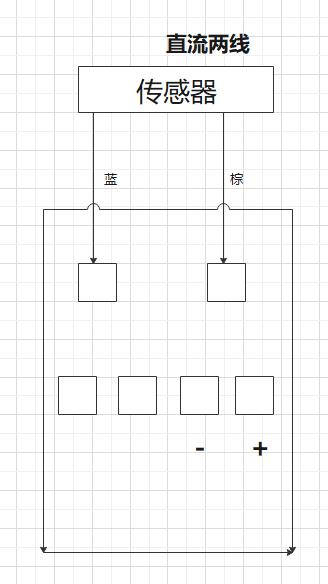

3、 DC two lines
