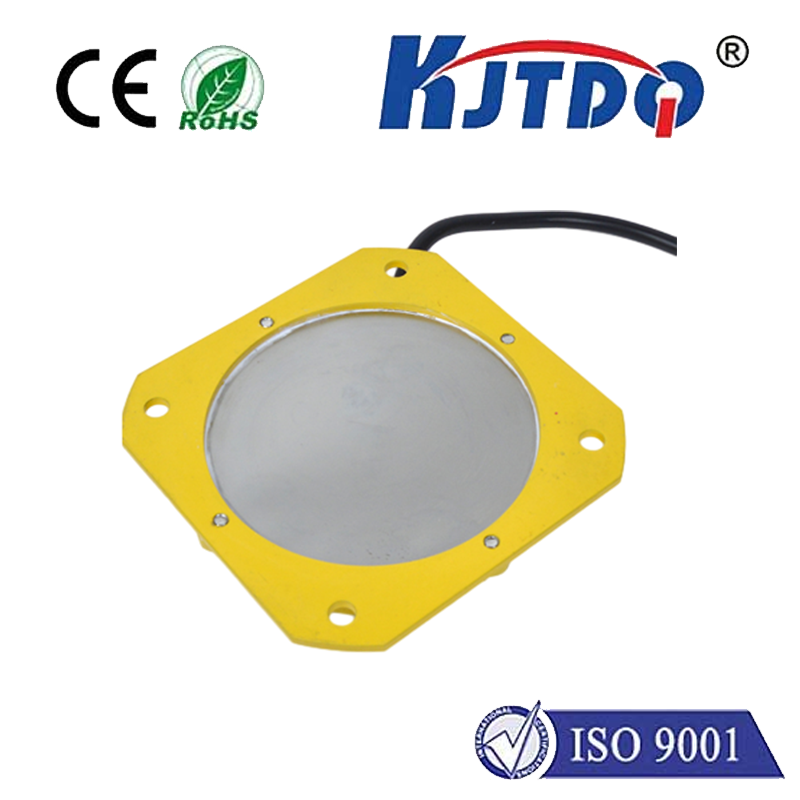

KJT-BLW thin film level meter (silica gel) adopts a side pressure movable door structure. After troubleshooting, the movable door automatically resets when the pressure is pushed. Tao shell with anti-corrosion layer, heavy-duty micro switch point, high sensitivity, action force Only 0.9Kg is needed to trigger the switch. The imported travel switch is used in the machine, which has sensitive action and high reliability. The chute clogging protection device adopts a door-type structure with a spring reset. When the material is clogged in the chute, the piled material puts pressure on the side wall of the chute, thereby pushing the originally installed movable door outward. When the movable door deflects at an angle When, its control switch action sends out warning, vibration or shutdown signals. When the blockage fault is eliminated, the movable door automatically resets under the action of the spring and returns to its original state. Status data can also be sent to the remote control room through the ground industry encoder.
