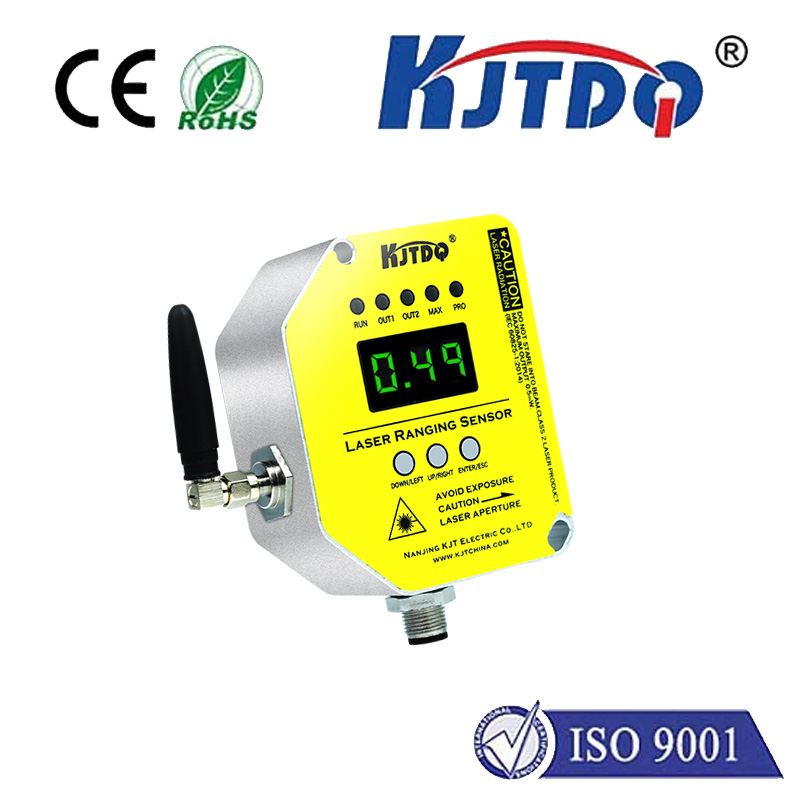

Wireless laser distance sensor
- Product Model:：KJT47CSZKWDG/KNW47RXCSZKWDG
- Protocol standards:：LoRa Private Network Protocol
- Frequency Range:：470～510MHz FHSS
- Maximum link budget:：157dB
- Maximum output power:：17dBm

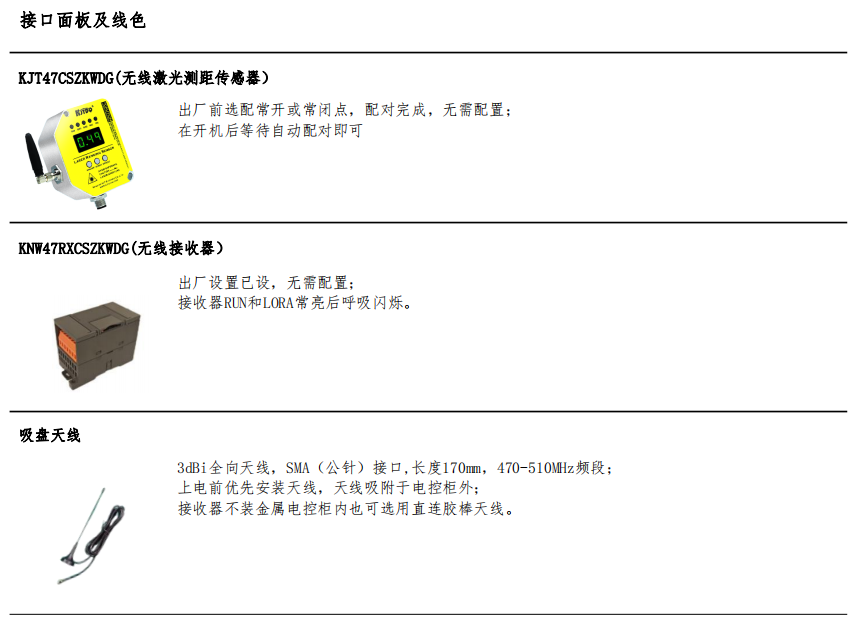

Before leaving the factory, select the normally open or normally closed point, pairing is complete, no configuration is required; just wait for automatic pairing after powering on
Factory settings are set, no configuration is required;

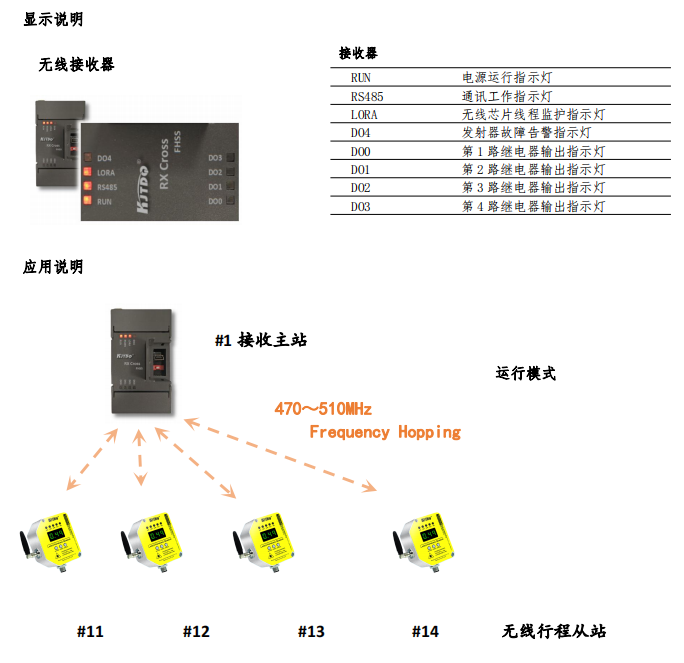

The receiver's RUN and LORA lights up steadily and then flashes with a breath.
3dBi omnidirectional antenna, SMA (male pin) interface, length 170mm, 470-510MHz frequency band; The antenna should be installed before powering on, and the antenna is adsorbed outside the electric control cabinet;
If the receiver is not installed in a metal electric control cabinet, a direct-connected rubber stick antenna can also be used.

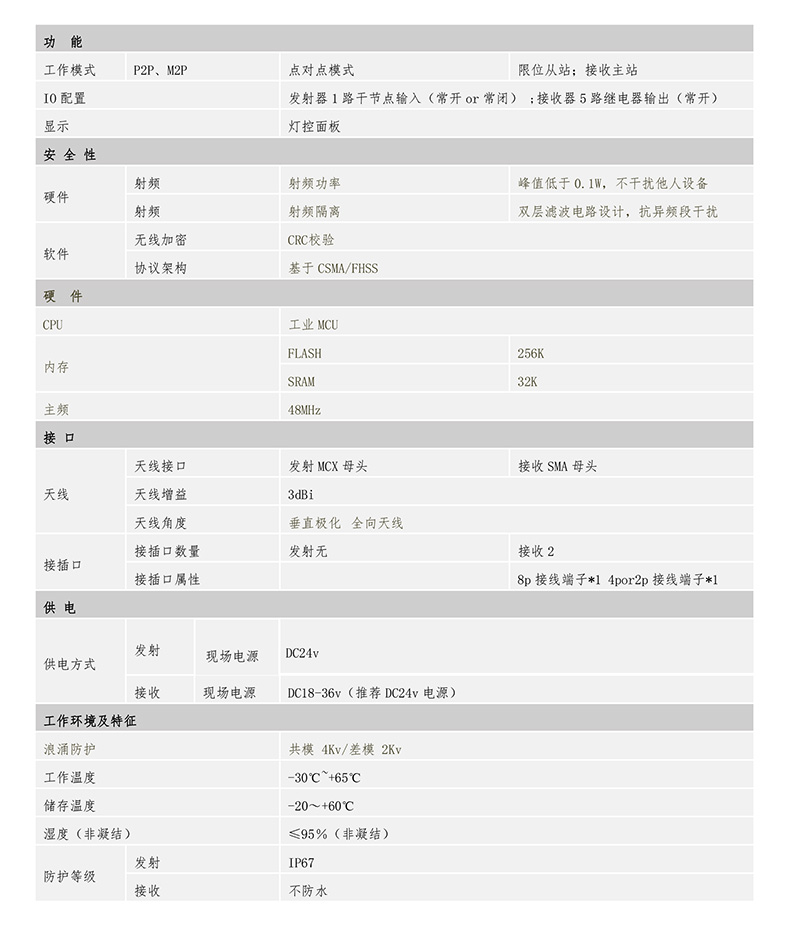

| Product Model | KJT47CSZKWDG/KNW47RXCSZKWDG |
| Protocol Standards | LoRa Private Network Protocol |
| Frequency range | 470～510MHz FHSS |
| Maximum link budget | 157dB |
| Maximum output power | 17dB m |
Polarization | Single polarization; vertical polarization |
Networking | Star |
Recommended transmission distance | 0-5M.0-10M 0-30M 0-50M 0-100M 0-150M ...0-800M |
Management | Support Chinese/English management, support local parameter settings |
| Enclosure protection grade | IP65 |
| Protection level | III |
