- Product Model :：KJT-D
- Measuring Range:：0.05m ~ 10m (90% reflectivity)
- Output Frequency:：500Hz (1~2KHz adjustable)
- Absolute Accuracy:：±10mm
- Operating Temperature:：-20℃~+55℃ (non-freezing)

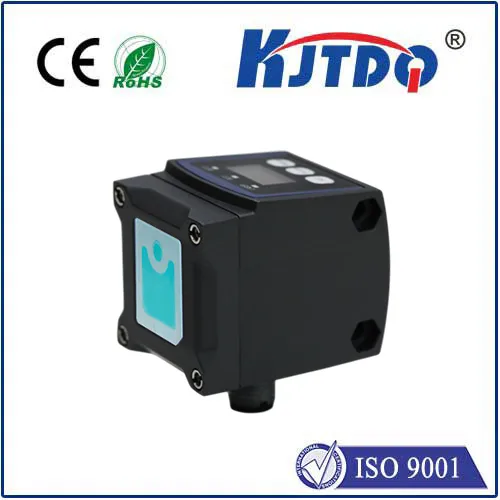

The KJT-D series is designed for complex industrial environments, offering reliable distance measurement from 0.05m to 10m with color-independent detection for accurate sensing of both dark and light targets.
Reliable optical distance measurement up to 10m
Switchable outputs: NPN/PNP & 4–20mA / 0–10V
Supports IO-Link communication and parameter setting
Adjustable sensing range and window functions
Ideal for background suppression applications
High cost-performance for industrial automation
Electronic parameters
| Operating Voltage | 12–30V DC |
| Power Consumption | <100mA |
| Switching Output | PNP / NPN / Push-Pull |
| Max. Output Current | 200mA |
| Analog Current Output | 4–20mA |
| Max. Load (Current Output) | 500Ω |
| Analog Voltage Output | 0–10V |
| Min. Load (Voltage Output) | 500Ω |
| Measuring Range | 0.05m–10m (90% reflectivity) |
| Output Frequency | 500Hz (adjustable 1–2KHz) |
| Absolute Accuracy | ±10mm |
| Repeat Accuracy | 5mm |
| Ambient Light Immunity | 3klux |
| Laser Wavelength | 650nm |
| Laser Class | Class 2 |
| Field of View | 4mm diameter @1m |
| Operating Temperature | -20°C ~ +55°C (non-freezing) |
| Short Circuit Protection | Yes |
| Overload Protection | Yes |
| Protection Rating | IP67 |

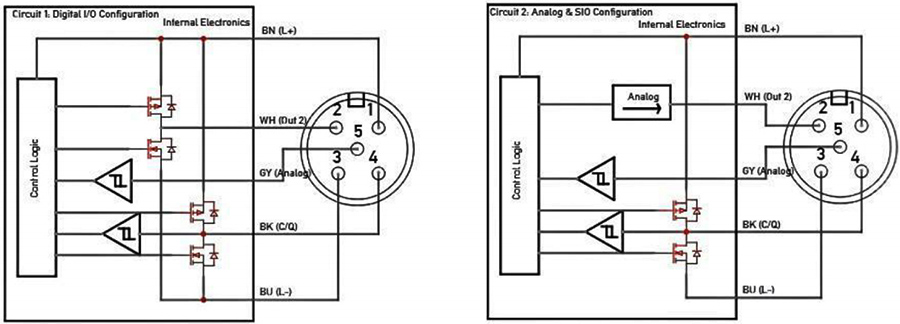

| Electrical Connection | M12 × 1 Connector |
