-Laser hot metal detector is easy to use;
-Power When the sensor is powered normally, the green light is always on;
-Signal When the detection target distance is within the set range, the blue light is always on;
-Alarm When there is an operation error or the sensor is not working properly, the red light is always on;
- The red indicator laser is used to aim at the target. After power is turned on, the red light will remain on for 20 minutes and then automatically turn off. The red light can be re-lit through the debug port
| Detection range | 15 meters (1% reflectivity) 50 meters (10% reflectivity) 120 meters (80% reflectivity) | |||
| Maximum target temperature | 1250℃ | |||
| Detection Error | ±3cm | |||
| Detection resolution | 1cm | |||
| Laser transmitter | Wavelength 905 nm, invisible infrared light, class 1 | |||
| Red hot indicator laser | ≤1mW class 2; The red light turns on after power-on and automatically turns off after 20 minutes | |||
| Detection output | 1 PNP output (300mA) 1 NPN output (500mA) 1 channel 4-20mA analog output 1 RS232 serial port 1 debug port (3.3VTTL serial port) | |||
| Alarm output | When there is an operation error or the sensor is not working properly, the red light is always on | |||
| Display and settings | 3 status indicators (Power, Signal, Alarm), RS232 port and TTL serial port can set baud rate, frequency, PNP, NPN, 4-20mA related parameters | |||
| Operating voltage | 18-36VDC (220VAC optional) | |||
| Power consumption | <2W | |||

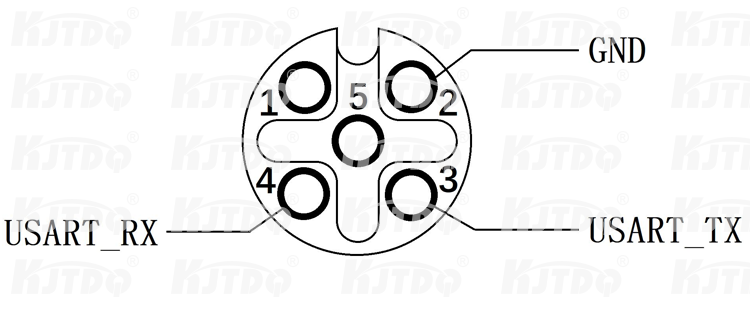

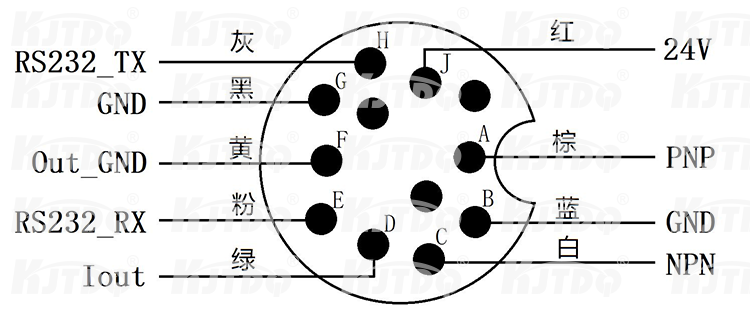

| interface | Power supply signal port: 12-pin aviation plug Debug port: 5-pin aviation plug | |||
| weight | 2kg | |||
| Protect | DC input polarity protection, level output short circuit and overload protection | |||
| Protection level | IP 67 (cast aluminum housing) | |||
| Operating temperature | -40℃ — +85 ℃ | |||
