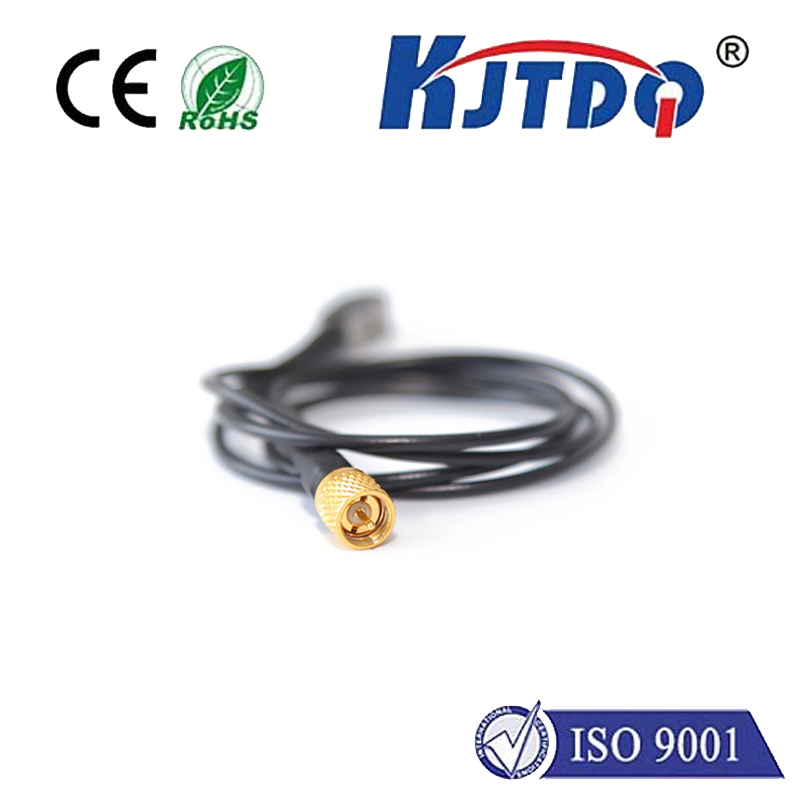

Micro piezoelectric acceleration sensor K23J90

Product Series：Micro piezoelectric acceleration sensor K23J90
Then the amount range (peak value)：± 10,000g
Sensitivity(25℃)：1 pC/g
Installation resonant frequency：≥55,000HZ
Lateral sensitivity ratio：≤5％
Operating temperature：-40℃~+120℃
Impact limit (peak value)：土20,000
Installation method：Glue
output method：Side end overall line
Housing material：Stainless steel
Quick inquiry

Feature

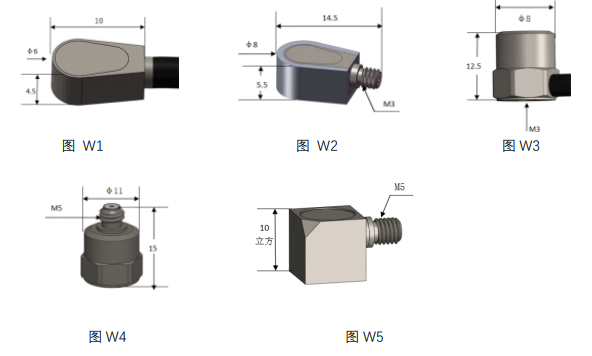

Dimensions
Wiring diagram
Application scenarios

Miniature piezoelectric acceleration sensors have wide frequency response, small size and light weight. They are suitable for structural testing, fatigue testing, environmental testing, drop testing, component verification, high-frequency applications and other occasions.

Measuring range (peak value)	±10,000 g
Sensitivity(25°C)	1 pC/g
Frequency response (±10%)	1-15,000 Hz
Installation resonant frequency	≥55,000 Hz
Lateral sensitivity ratio	≤5%
Insulation resistance	＞10^9 Ω
Operating temperature	-40°C~+120°C
Impact limit (peak value)	±20,000
Sensitive parts	Ceramic shear
Dimensions	6mm x 4.5mm x 10mm
Housing material	Stainless Steel
output method	Side end overall line
Installation method	Glue
weight	~1.8克
Appendix
mounting bolts	/
