KJIT explosion-proof photoelectric switches have a complete range of products, including diffuse reflection, mirror reflection, and through-beam types. They can be used in dangerous environments that require explosion-proof. They have strong anti-interference, stable performance, and long service life, fully meeting your needs.
| Diameter | M18 |
| Working illumination | Incandescent lamp: 3000Lx or less, sunlight 1000L or less |
| Installation | Diffuse reflection/specular reflection/reflection |
| Detection distance | 0.1m/0.3m/1m，4m/，/10m/20m |
| Operating voltage | 24V DC |
| Load current | ≤200mA |
| Switch protection | Short circuit/reverse connection |
| Housing Material | Stainless steel/Nickel-plated brass/Aluminum alloy |
| Ambient temperature | -25℃-+70℃ |

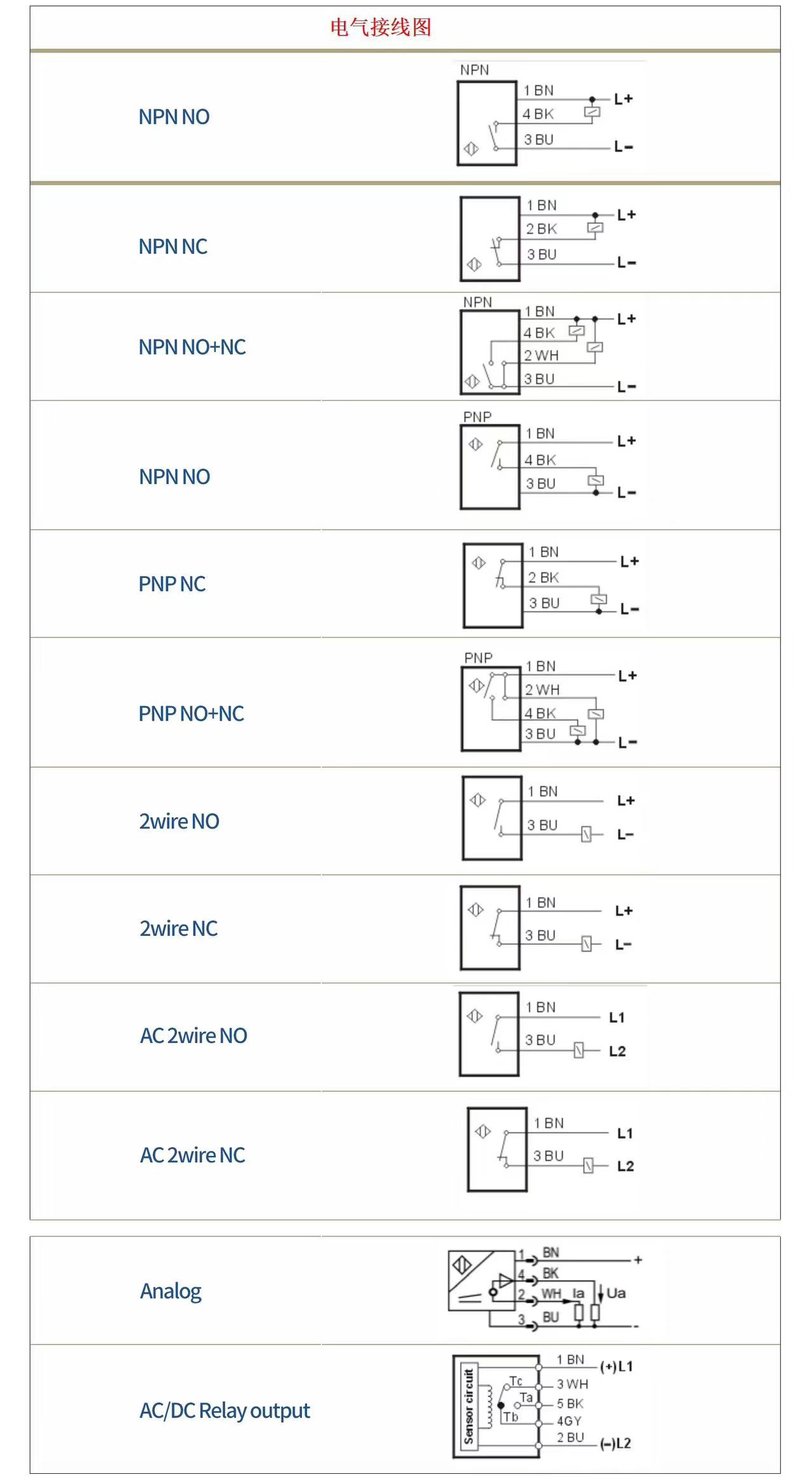

| Output method | NPN/PNP/NO/NC/NO+NC |
| Protection level | IP67 |
| Explosion-proof grade | YES |
| CE certification | YES |
| ISO9001 Quality Management System Certification | YES |
