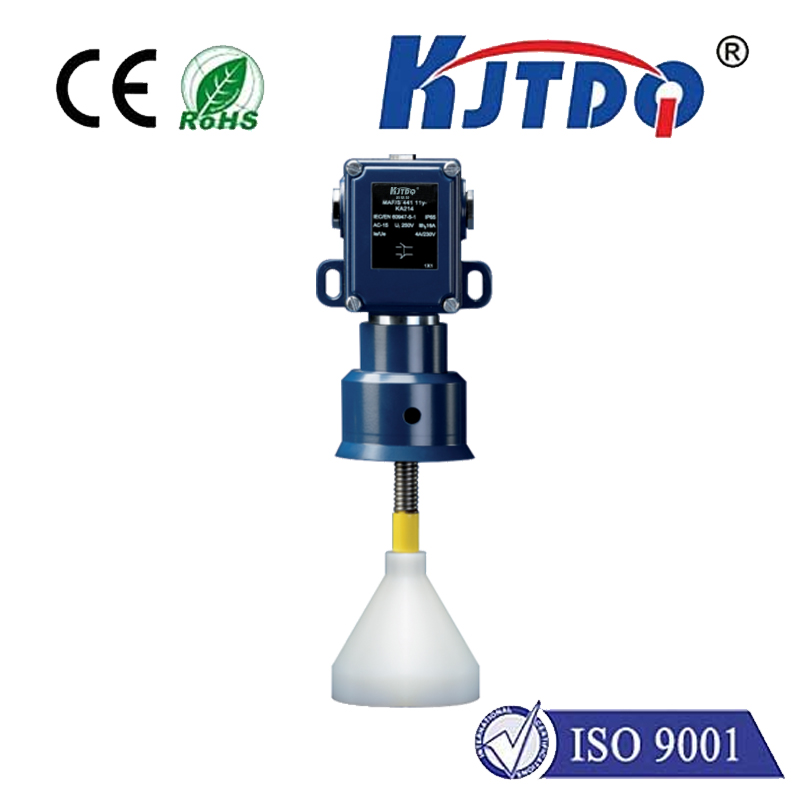

KJT heavy-duty limit switch is a mechanical control switch, which is used for conveyor belt deviation prevention, crane over-roll protection, and rope pull switch. Taking advantage of its high reliability, it is widely used in steel equipment, large conveying machinery, loading and unloading machinery and cement equipment. Resistant to harsh environments. The glass sealed contacts are filled with inert gas and are not affected by the environment. Resistant to vibration, impact, and wide range of applications.
| Product parameters | |
| model | MAF/S 441-11Y |
| Principle of action | Mechanical |
| Shell raw materials | aluminum |
| Detect cone material | plastic |
| Contact material | silver |
| gross weight | 1,460g |
| Normally closed quantity (NC) | 1 |
| Normally open quantity (NO) | 1 |
| operating units | detection cone |
| Mechanical life | 1,000,000 operations |
| driving force | 14N |
| Minimum drive speed | 1mm/min |
| Maximum action speed | 1m/sec |
| Circuit connection | Screw connection M20 x 1.5 |
| Minimum cable cross-section | 1.5mm² |
| Maximum cable cross section | 2.5mm² |
| Notice | Cable part: including conductor ferrules |

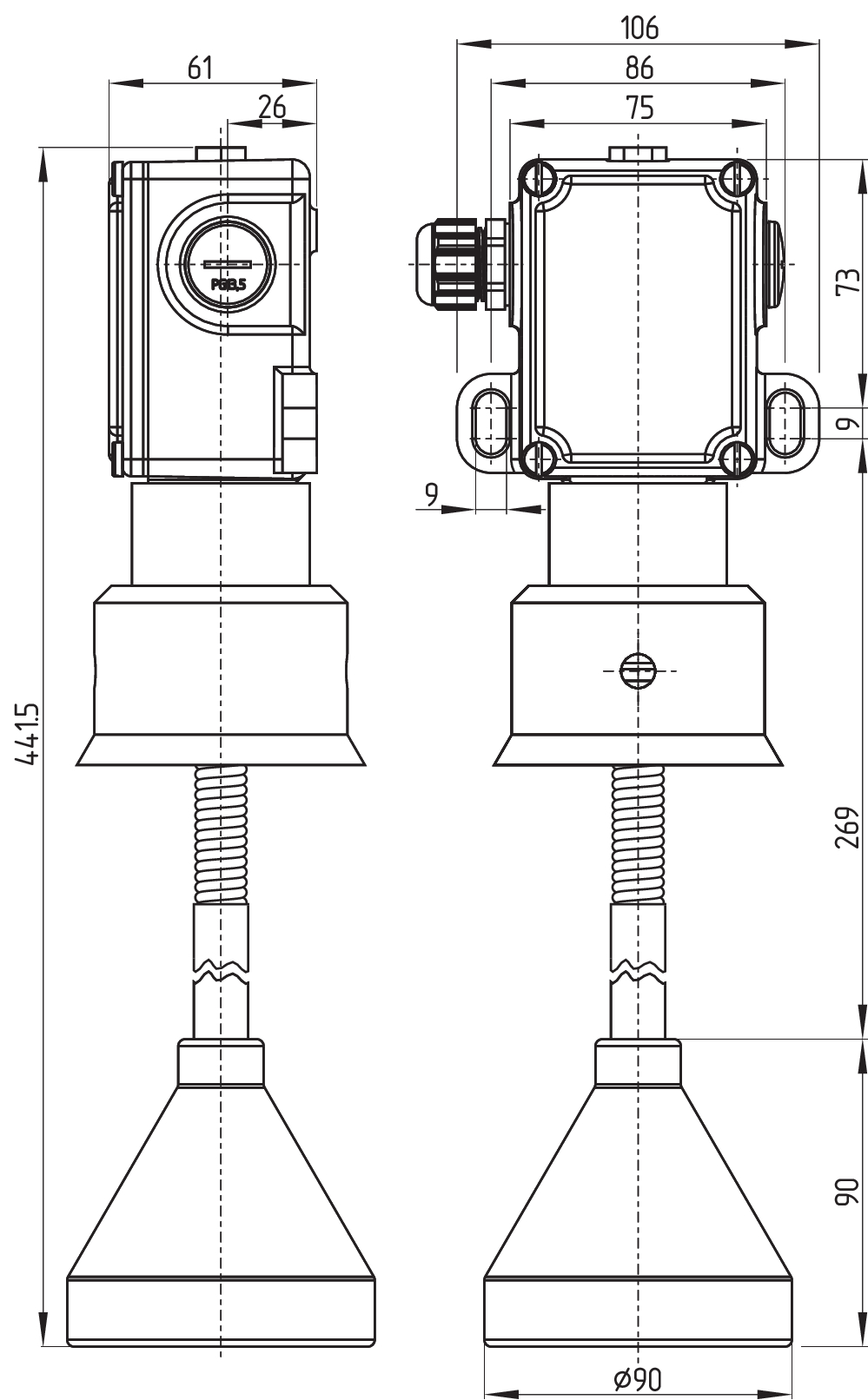

| Product Size | |
| length, width and height | 61mm*106mm*438mm |
| Detection cone diameter | 90mm |
| Application environmental conditions | |
| Protection level | IP65 |
| ambient temperature | -30 ... +90°C |
| Rated insulation voltage | 250 VAC |
| Rated impulse withstand voltage | 4kV |
| Electrical data | |
| Thermal test current | 16A |
| Application category | AC-15: 250 V / 4 A |
| switching element | Normally open contact, normally closed contact |
| Switching principle | quick action |
| Maximum bounce duration | 5 ms |
| Maximum switching time | 35 ms |

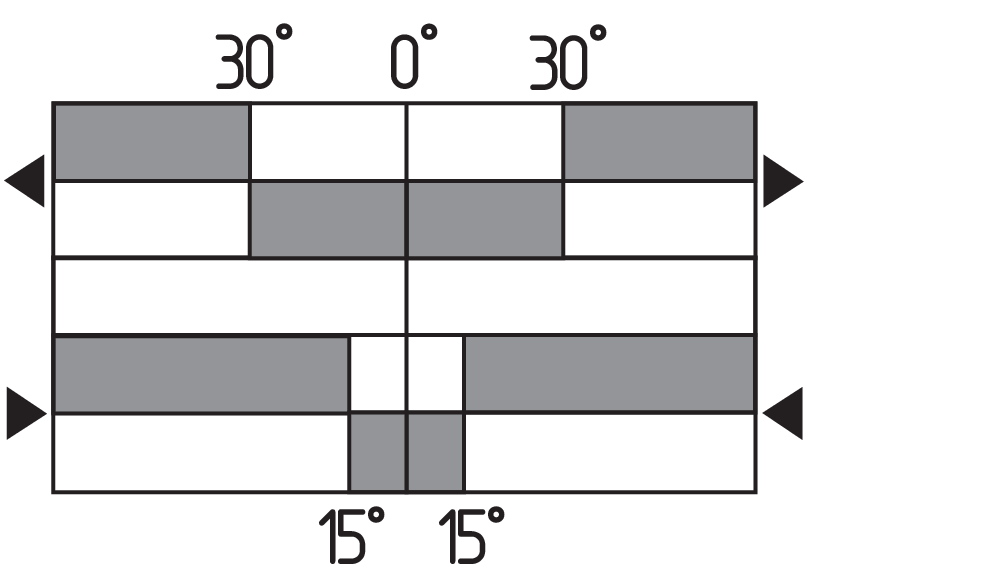

NOTE Switch travel diagram
VS NO contact adjustment range VÖ NC contact adjustable range N After the trip |
Contact closed
Contact open
Set range
breakpoint
Definitely opening order/angle
