KJT-FG40 TOF Photoelectric Sensor
- ●：Detection distance 1m/2m/4m
- ●：Switching frequency up to 1000 Hz
- ●：Stable detection of transparent objects
The KJT TOF Photoelectric Sensor uses advanced Time of Flight (TOF) technology to deliver high-precision distance measurement with millimeter-level accuracy. It performs reliably in complex environments and maintains stable output in both bright sunlight and low-light conditions — without the limitations of ultrasonic or traditional photoelectric sensors.
Compared to conventional photoelectric switches, TOF technology provides more accurate positioning, longer detection distance, and stronger resistance to environmental interference.
Type | Specification |
Laser Light Source | Laser diode 650nm, ≤1mW; Complies with GB7247.1-2001, Class II laser eye safety requirements |
Laser Class | CLASS-II |
Ranging Frequency | 1000Hz, Adjustable |
Working Distance | 0.05m-4m (4m @ 10% reflectivity) |
Response Time | 1ms (Adjustable) |
Systematic Error | ±10mm |
Repeat Error | ±3mm |
Working Voltage | 9-36V DC |
Interface | PNP/NPN/TTL Serial Port |
Power Consumption | 0.5W |
Weight | <10g |
Dimensions (L×W×H) | 33mm × 20mm × 11mm |
Protection Class | IP65 |
Operating Ambient Temperature | -20℃-+75℃ |
Storage Ambient Temperature | -40℃-+100℃ |
Ambient Light Immunity | >50klux |
Housing Material | Aluminum Alloy (AL) |

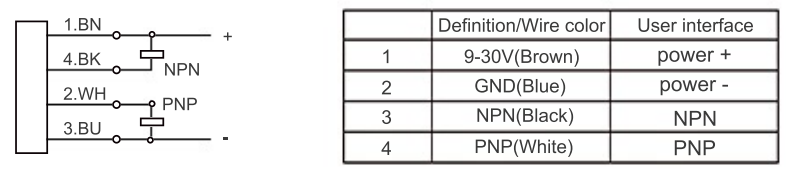

Output Mode | NPN or PNP |
