Parameter | Specification |

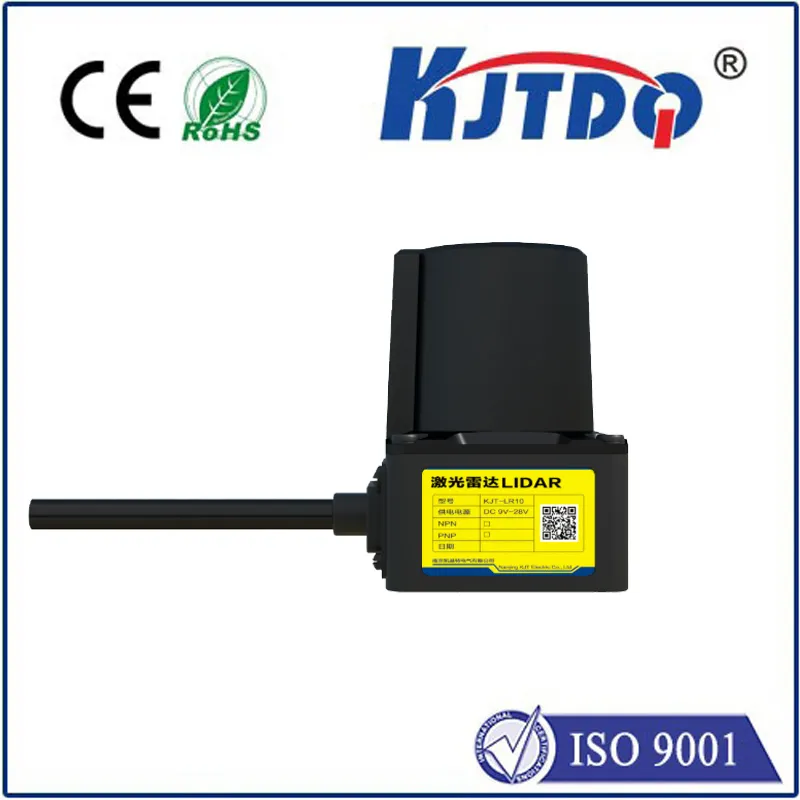

Model | KJT-LR10 |
Ranging Principle | Pulsed TOF (Time of Flight) |
Laser Wavelength | 905nm |
Maximum Detection Distance | ≥10m (70% reflectivity); ≥4m (10% reflectivity) |
Detection Range | 270° |
Data Sampling Rate | 18KHz/54KHz |
Scanning Frequency | 25Hz |
Angular Resolution | 0.5° |
Ranging Accuracy | ±2cm (within 10m) |
Response Time | 40ms |
Startup Time | <10s |
Number of Channels | 64 (each channel includes 3 detection areas) |
Detection Output Delay | Configurable within 0-2s |
Detection Hold Delay | Configurable within 0-2s |
Detection Size | Configurable within 0-5° |

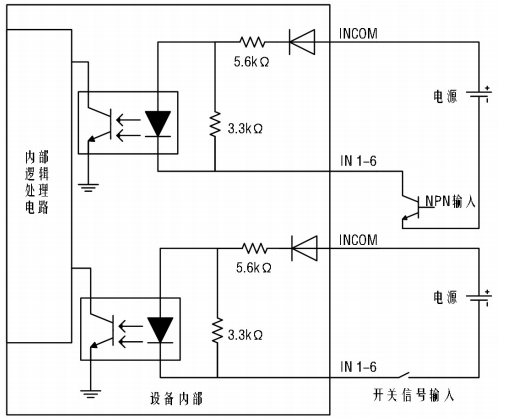

Digital Input | 6 channels (NPN) |
Digital Output | 4 channels (3 area signals, 1 fault signal) |
Indicator Lights | 4 (3 area signals, 1 fault signal) |
Communication Interface | USB-TYPE-C (Serial Port) |
Power Supply | DC9V–28V |
Power Consumption | Rated Power: <1W (no load); Startup Power: <3W (no load) |
Operating Temperature | -10℃ to 50℃ |
Storage Temperature | -20℃ to 70℃ |
Ambient Humidity | Below 85%, no condensation |
Protection Class | IP65 |
Ambient Light Immunity | 80000Lux |
Weight | 171g |

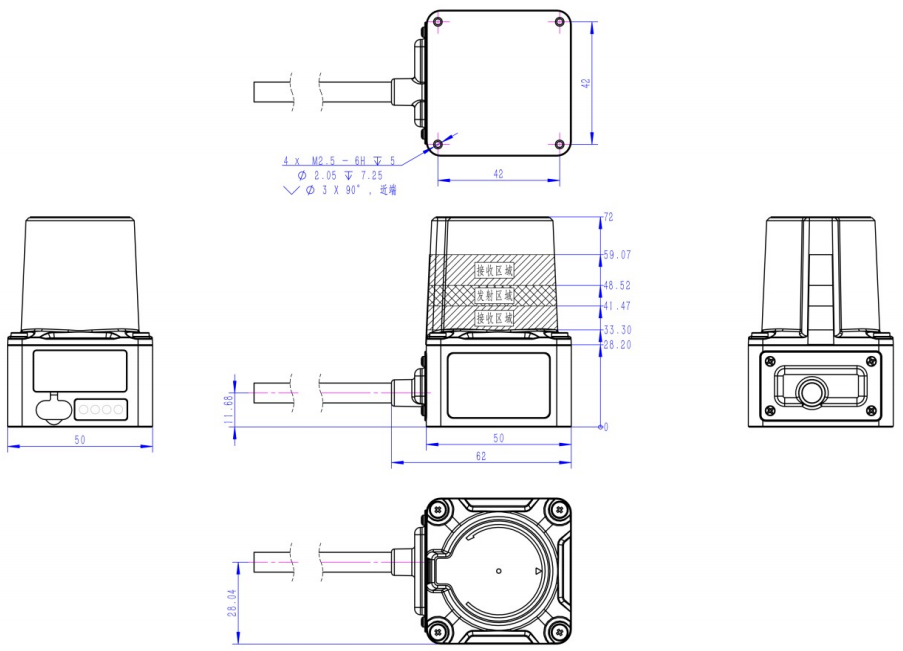

Dimensions | 50mm(L)×50mm(W)×72mm(H) |
Sinusoidal Vibration | Frequency: 10Hz~1000Hz, Acceleration: 5g, Three axes, 10 cycles per axis |
Random Vibration | Frequency: 5Hz~250Hz, Gr.m.s=4.24g, Three axes, 5 hours per axis |
Shock Resistance | Acceleration: 50g, Pulse time: 3ms, 5000 shocks per axis, 30000 shocks total |
Electromagnetic Compatibility (EMC) | EMI: EN61326-1:2013, EN55011:2010; EMS: EN61000-4-2:2009, EN61000-4-3:2010, EN61000-4-8:2010 |
