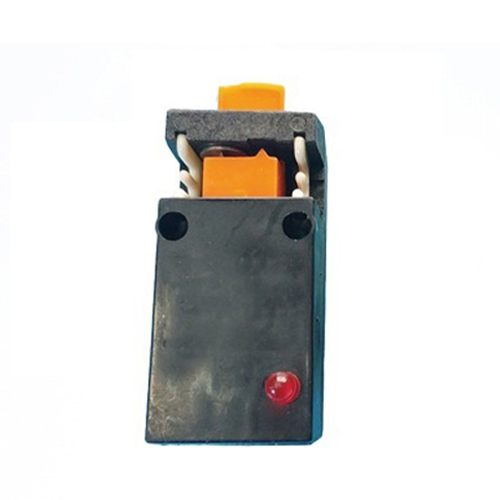

Seeing the Unseen: How Ultrasonic Proximity Sensors Shape Our World

That reassuring beep-beep-beep as you reverse your car, the automatic faucet that dispenses water without a touch, the precise level measurement in a factory tank – what invisible force powers these everyday marvels? The answer often lies in ultrasonic proximity sensors, silent observers using sound beyond our hearing to map the unseen world around them. These remarkably versatile devices are the unseen eyes for countless machines and systems, enabling automation, safety, and efficiency across numerous industries.

The Core Principle: Echoes in the Dark

At its heart, an ultrasonic proximity sensor operates much like a bat navigating a cave. Its fundamental principle is echolocation. The sensor contains two key components: an ultrasonic transducer (which acts as both speaker and microphone) and sophisticated electronic circuitry.

1. Emission: The sensor emits a short burst of high-frequency sound waves, typically in the range of 25 kHz to 400 kHz, far above the human hearing threshold of 20 kHz. This is the ping.
2. Propagation: These sound waves travel through the air at a known speed (approximately 343 meters per second at room temperature) in a cone-shaped beam pattern determined by the sensor’s design.
3. Reflection: If an object is present within the sensor’s detection range and within this beam, the sound waves hit it and bounce back towards the sensor.
4. Reception: The transducer switches modes and listens for the returning echo.
5. Calculation: The sensor’s electronics precisely measure the time-of-flight (ToF) – the interval between sending the initial pulse and receiving the echo. Using the known speed of sound in air, it calculates the distance to the object with simple arithmetic: Distance = (Speed of Sound × Time-of-Flight) / 2. The division by two accounts for the sound wave traveling to the object and back.

Why Ultrasonic? Key Advantages Driving Adoption

Ultrasonic sensors offer a compelling set of benefits that make them ideal for diverse proximity detection and distance measurement tasks:

• Material Independence: Unlike optical sensors (infrared, laser), ultrasonic waves detect objects regardless of their color, transparency, or light reflectivity. They reliably sense matte black surfaces, clear glass or liquids, and textured materials with equal ease.
• Robust Performance in Challenging Environments: They are largely unaffected by ambient light conditions (sunlight or total darkness), dust, smoke, or fog – common challenges that can easily disrupt vision-based systems. This makes them indispensable for industrial settings.
• Non-Contact Operation: As a proximity sensor, they detect objects without physical touch, eliminating wear and tear and enabling clean operation essential in food & beverage, pharmaceutical, or sterile environments.
• Reliable Liquid & Solid Level Sensing: Their ability to work well with liquids and solids makes them a top choice for tank level monitoring in processes ranging from water treatment to chemical manufacturing.
• Cost-Effectiveness: Compared to certain high-precision laser rangefinders or complex vision systems, ultrasonic distance sensors offer a highly reliable and accurate solution at a relatively lower cost.
• Solid Object Detection: They are excellent at detecting the presence or absence of solid objects within their range, forming the backbone of many automation triggers, object counting systems, and collision avoidance setups.

Beyond Beeping Cars: Diverse Applications

The unique capabilities of ultrasonic technology lead to its widespread integration:

• Automotive: Parking assistance systems (the ubiquitous parking sensor), blind-spot detection, automated tailgates, and collision avoidance systems rely heavily on these sensors.
• Industrial Automation & Robotics: Object detection on conveyor belts, pallet presence sensing, robot navigation and obstacle avoidance, stack height measurement, and filling level control in tanks are common uses. Their robustness in dirty or damp environments is key.
• Consumer Electronics & Appliances: Automatic faucets and soap dispensers, smart trash cans, robotic vacuum cleaners (cliff detection and obstacle sensing), and gesture control interfaces leverage ultrasonic proximity.
• Medical Devices: Non-contact liquid level sensing in infusion pumps, proximity detection in sensitive equipment.
• Building Automation & Security: Automatic doors, presence detection for lighting control, intrusion detection systems, and even water tank level monitoring.
• Agriculture & Drones: Crop height monitoring, collision avoidance for drones navigating complex environments.

Important Considerations: Range, Beam Angle, and Environment

While highly versatile, effective deployment requires understanding their operating parameters:

• Detection Range: This varies significantly by sensor model, from a few centimeters up to several meters. Selecting the right range for the application is crucial. Long-range ultrasonic sensors exist but have specific considerations.
• Beam Angle: The cone-shaped beam determines the detection area. Narrow beams are precise for pinpointing objects, while wider beams cover larger areas. Knowing the beam pattern is essential for accurate positioning and avoiding unwanted detections.
• Sound-Absorbing Materials: Soft, fibrous, or highly porous materials (like foam, thick fabric, or certain insulation) absorb sound waves rather than reflecting them well, reducing detection reliability.
• Temperature Dependence: The speed of sound changes with air temperature. Many sensors have built-in temperature compensation to maintain accuracy. Significant temperature gradients in the sensing path can sometimes cause minor issues.
• Sound Interference: Multiple sensors operating at similar frequencies nearby can interfere with each other. Careful placement, shielding, or using sensors with different operating frequencies mitigates this.
• Minimum Sensing Distance: Objects placed too close to the sensor may be within its “blind spot,” where the echo returns before the sensor finishes sending its initial pulse and switches to receive mode. Sensor specifications clearly state this minimum distance.

Ultrasonic Proximity Sensors: An Invisible Foundation

From enhancing vehicle safety to streamlining factory production and adding convenience to our daily lives, ultrasonic proximity sensors are a fundamental and remarkably adaptable technology. Their ability to reliably detect objects and measure distances in challenging environments, irrespective of visual characteristics, ensures their continued relevance across an ever-expanding range of applications. Understanding their operating principle, strengths, and limitations is key to unlocking their full potential and integrating these silent sentinels effectively into any system requiring robust proximity awareness or distance measurement. As automation advances and the demand for reliable sensing grows, the role of these ultrasonic distance sensors will only become more critical.
