Product Overview
The KJT IO-Link Laser Distance Sensor is designed for short to medium-range detection in industrial environments, integrating a display, push-button setup, switching/analog outputs, and IO-Link communication.
KJT IO-Link Series Laser Distance Sensor
Provides reliable distance measurement from 0.05 m to 10 m. Ideal for automated equipment requiring background suppression, distance feedback, position confirmation, and parameterized maintenance.
- Range
- 0.05m-10m
- Power Supply
- 12-30V
- Output
- NPN / PNP / Push-Pull
- Analog Output
- 4-20mA / 0-10V
- Interface
- M12*1
- Protection
- IP67
Key Advantages
Multiple Output Options
Configurable NPN / PNP / Push-Pull, 4-20 mA, and 0-10 V outputs.
IO-Link Parameters Setting
Supports communication, parameter setup, process data and ISDU parameters setup.
Adjustable Detection Logic
Standard, window, datum, and analog modes adapt to different operating conditions.。
Robust Industrial Protection
Includes short-circuit protection, overload protection, and an IP67-rated housing.
Easy On-Site Operation
Chinese/English menus, display screen, push-button setup, and product information view.
Applications
The KJT IO-Link series is suitable for distance detection, presence confirmation, and process monitoring in stacking, level measurement, roll diameter, tire, and high-temperature equipment applications.

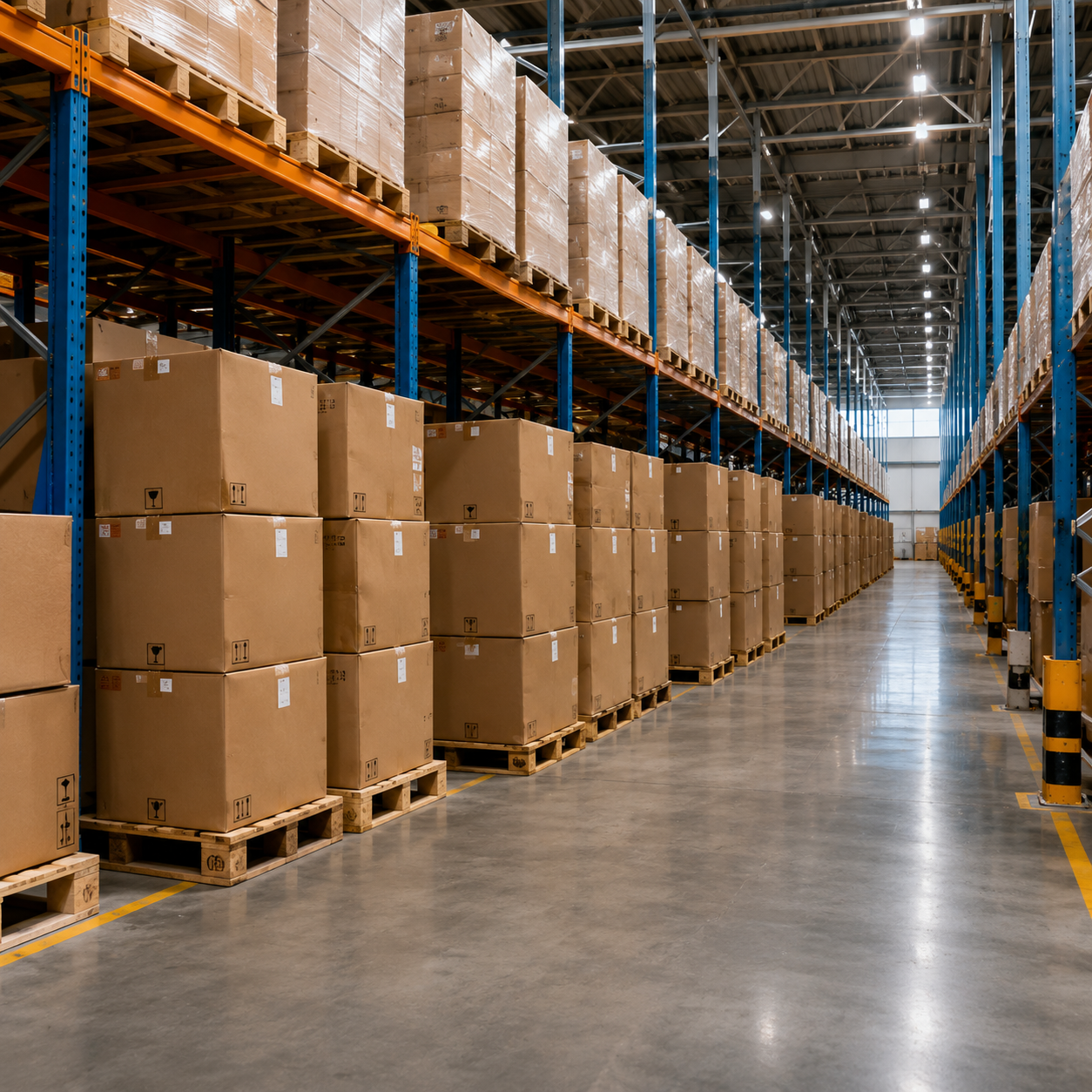

Stack Inventory and Presence Detection
Detect pallets, stacked boxes, and shelf occupancy, providing stable distance signals for warehouse inventory monitoring.

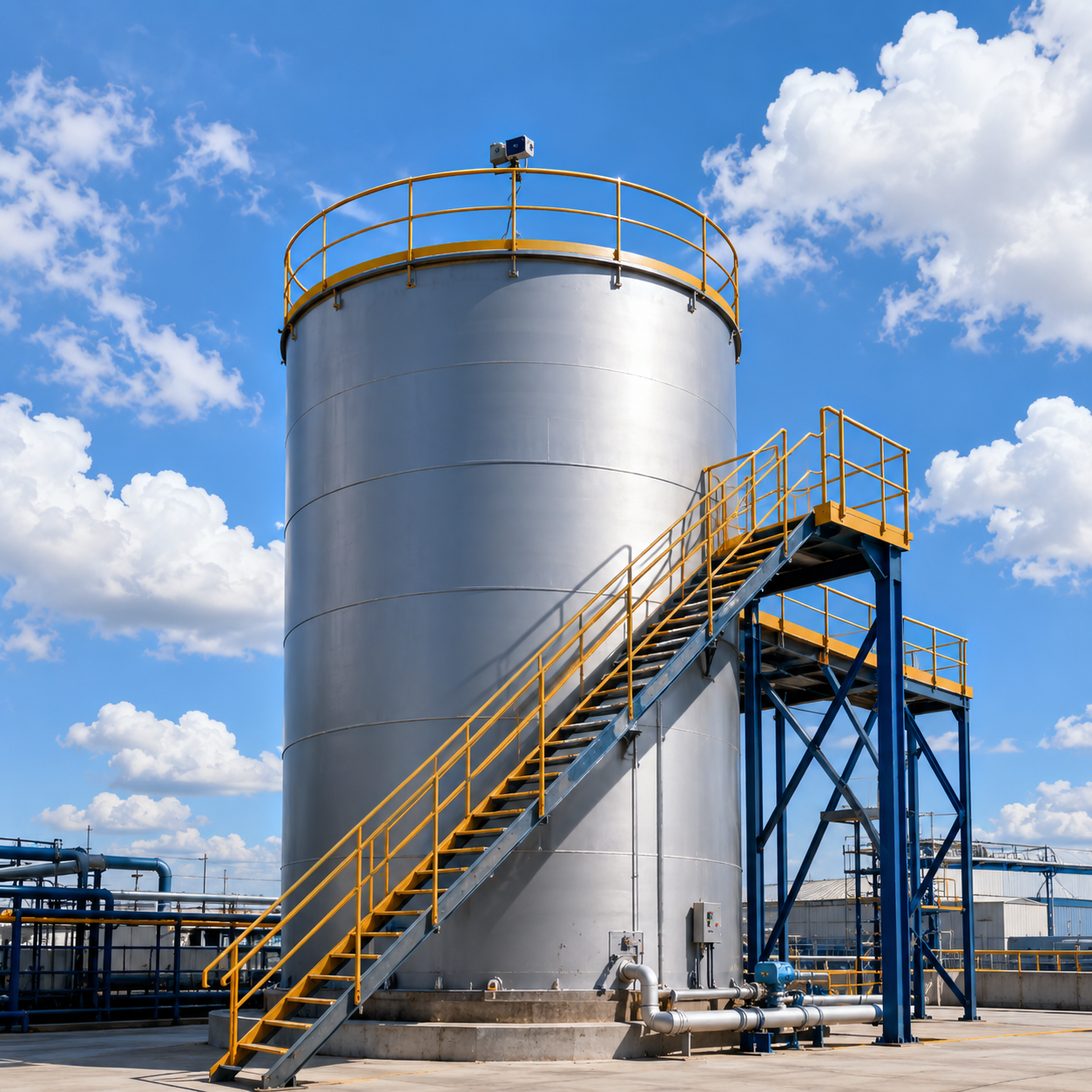

Large Hopper Level Monitoring
Non-contact distance measurement for hoppers, tanks, and other containers, continuously tracking level changes.

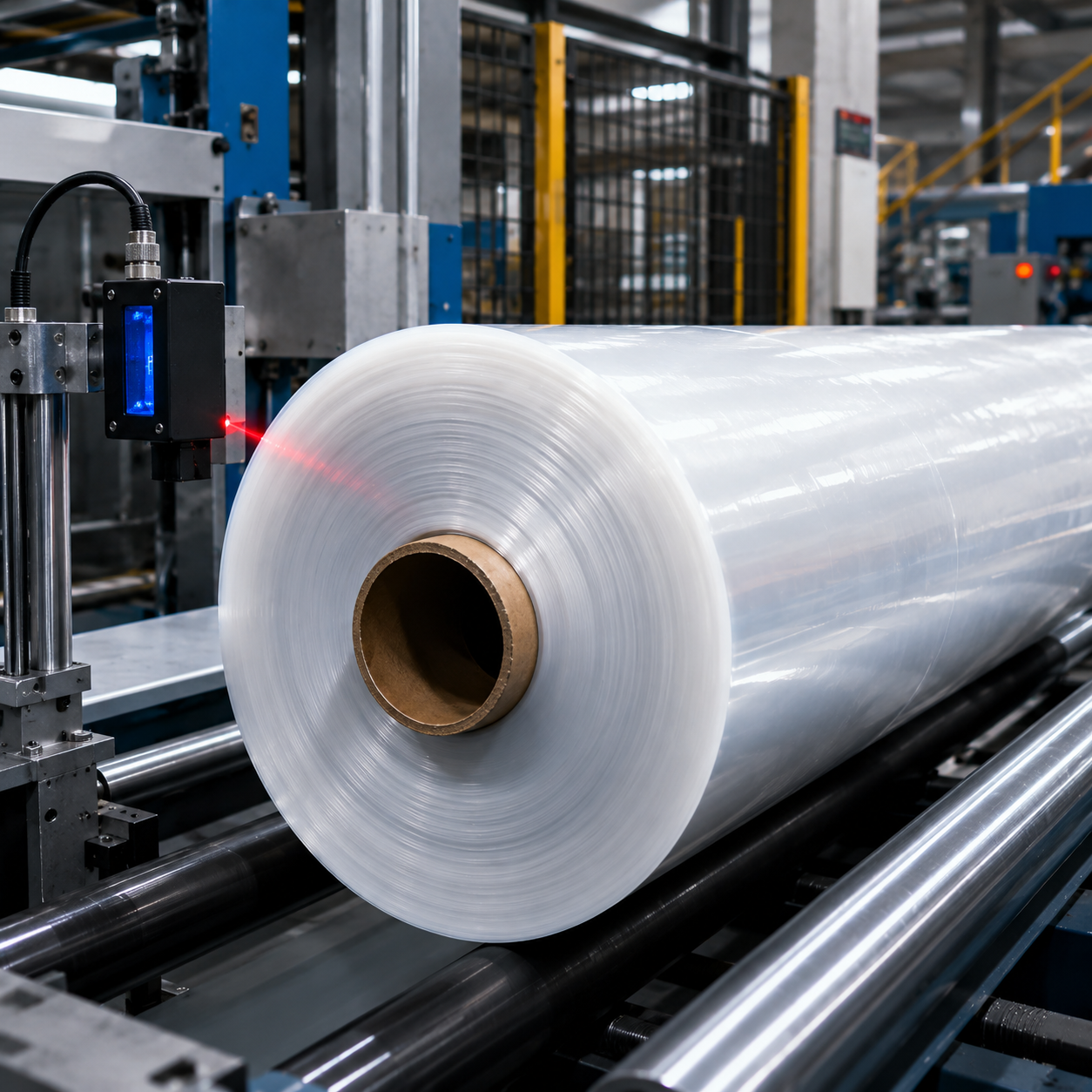

Plastic and Dark Roll Diameter Detection
For plastic film, dark materials, and other winding stations, detecting roll diameter changes and outputting control signals.

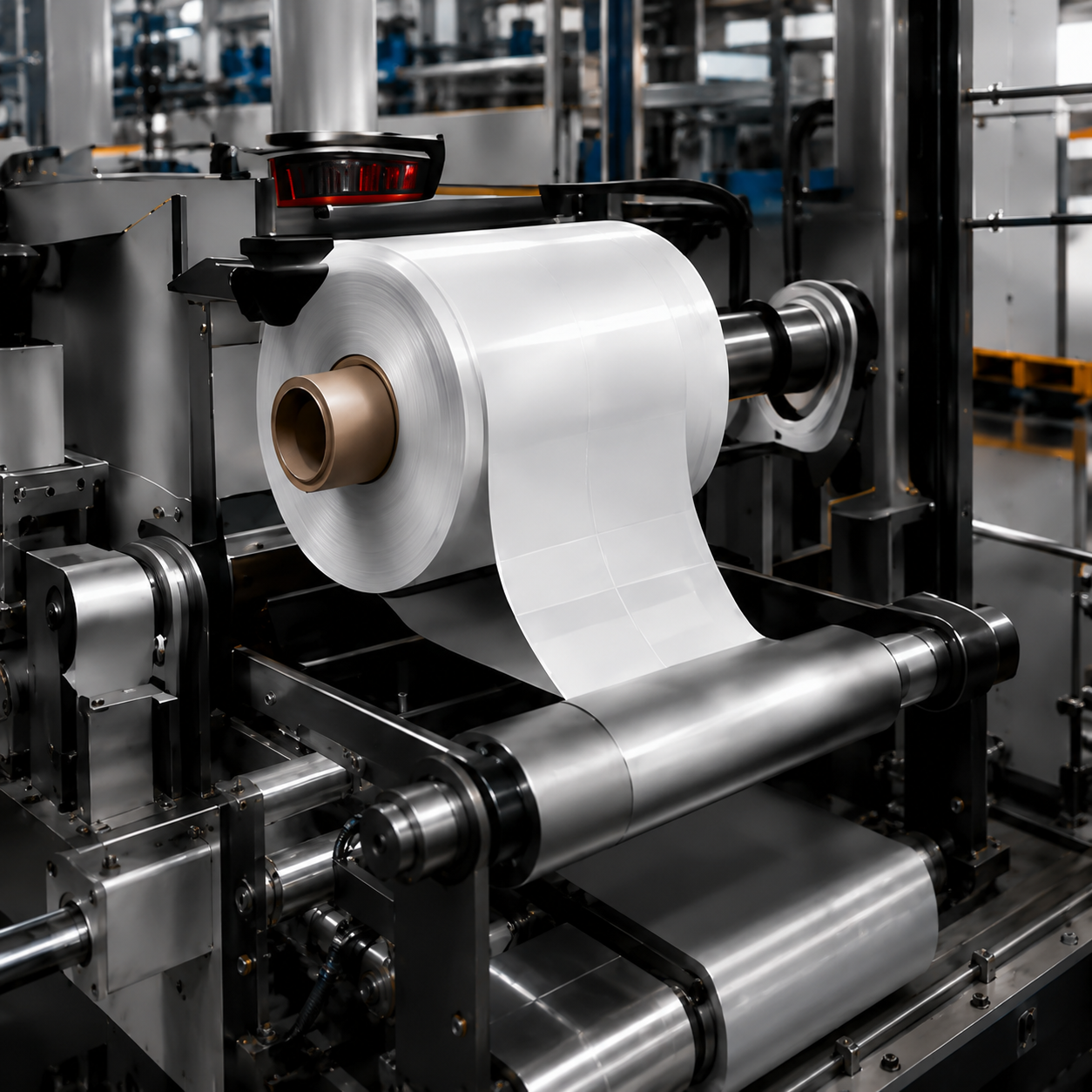

Label and Web Roll Diameter Detection
Measure roll diameter during label, paper, or film winding and unwinding to support roll changeover and tension control.

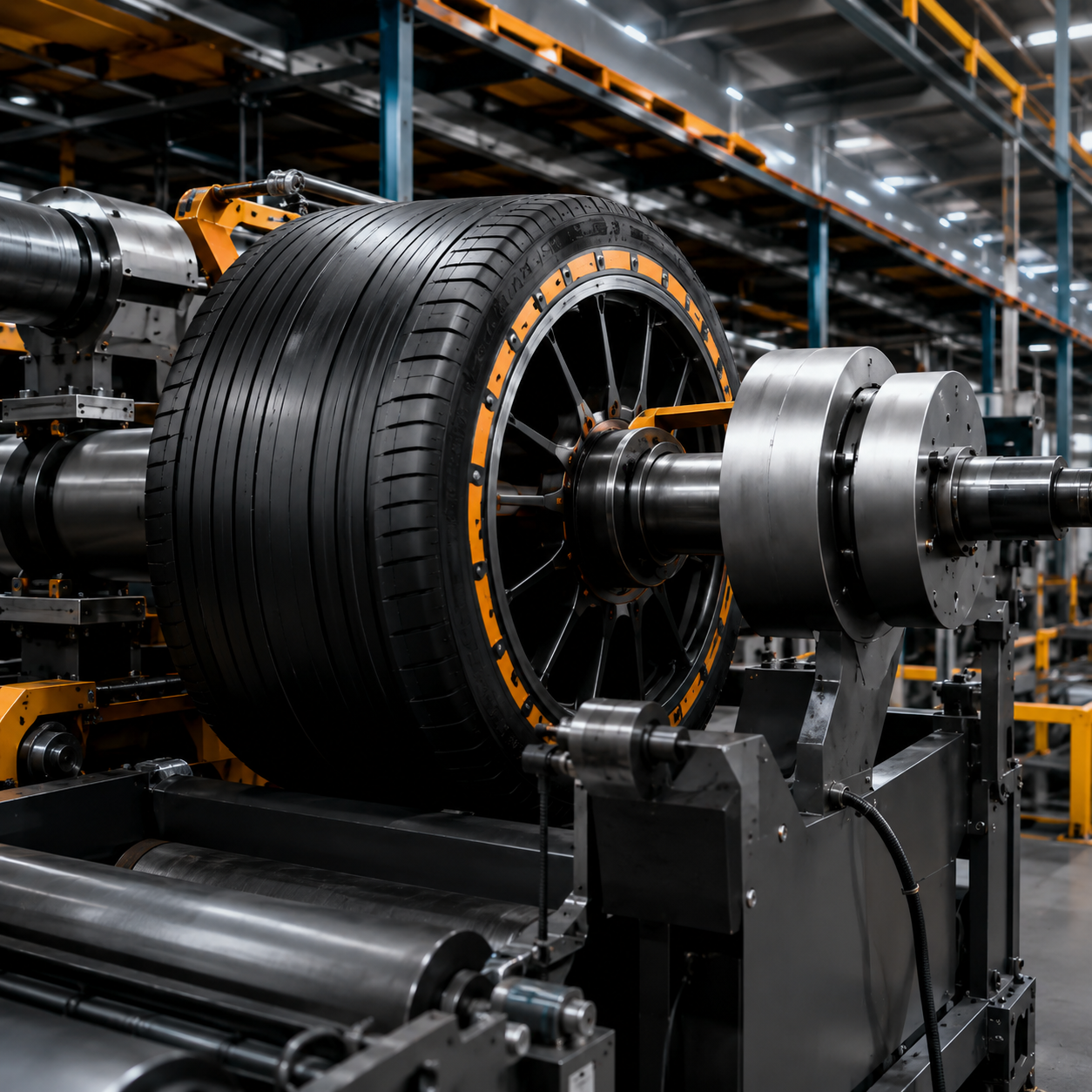

Tread Rubber Loop Tension Monitoring
Used in tire forming and tread rubber loop stations, supporting stable tension through distance feedback.

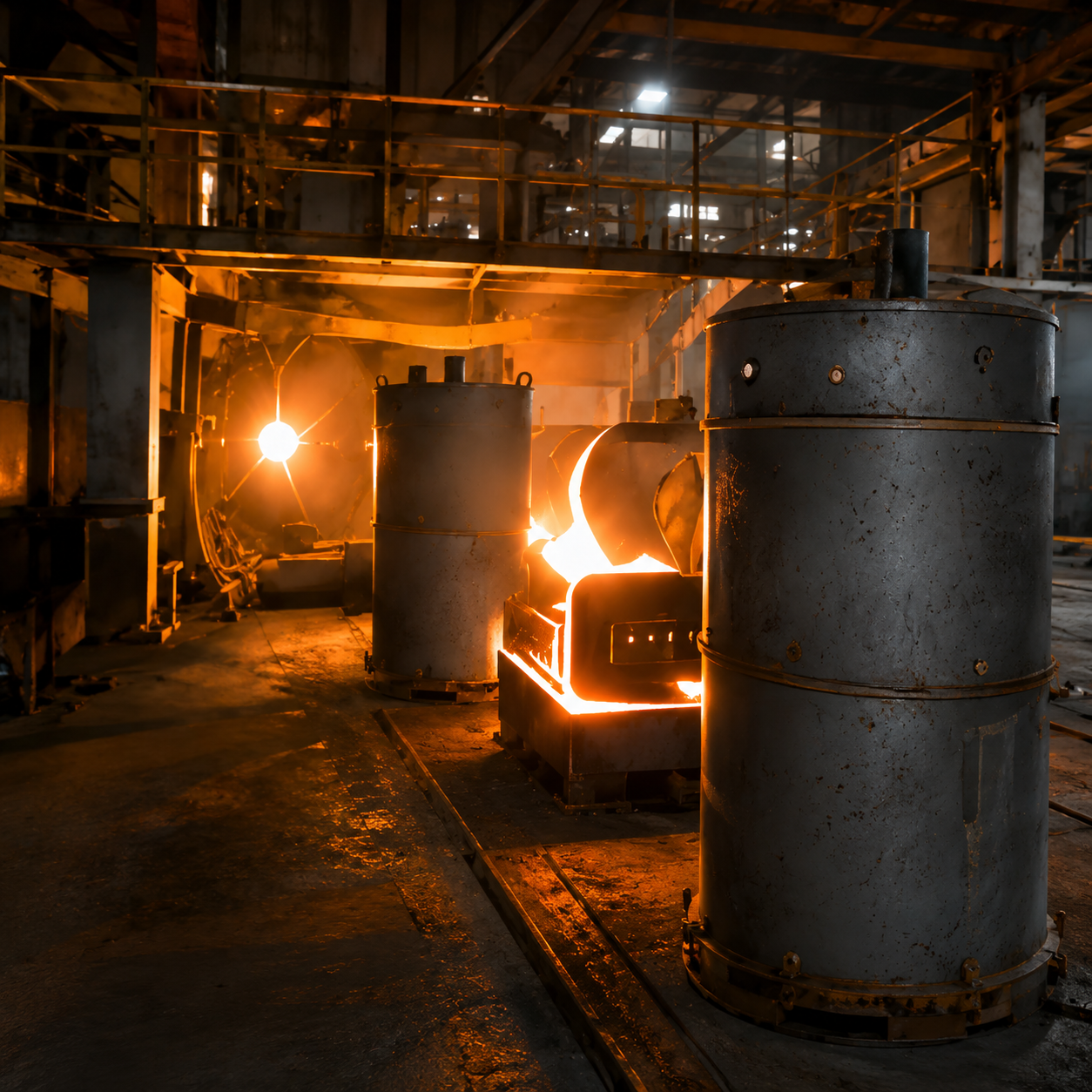

High-Temperature Equipment Applications
Suitable for distance detection, position confirmation, and safety interlock signal acquisition around high-temperature equipment.
Parameters
Electrical Data
| Operating Voltage | 12-30V |
|---|---|
| Current Consumption | < 100mA |
| Switching Output | PNP / NPN / Push-Pull |
| Max. Output Current | 200mA |
| Analog Current Output | 4-20mA |
| Max. Current Output Load | 500Ω |
| Analog Voltage Output | 0-10V |
| Min. Voltage Output Load | 500Ω |
| Service Life | 50000h |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Protection Rating | IP67 |
| Electrical Connection | M12*1 Connector |
Distance Measurement Performance
| Measuring Range | 0.05 m-10 m (90% reflectance) |
|---|---|
| Output Frequency | 40 Hz (1-2 kHz adjustable) |
| Absolute Accuracy | ±10 mm (based on maximum range; shorter measuring distances provide higher accuracy) |
| Repeatability | 3mm |
| Ambient Light Immunity | 3klux |
| Laser Wavelength | 650nm |
| Laser Class | Class 2 |
| Light Spot | 4 mm diameter @ 1 m |
| Operating Temperature | -20°C to +55°C (no freezing) |

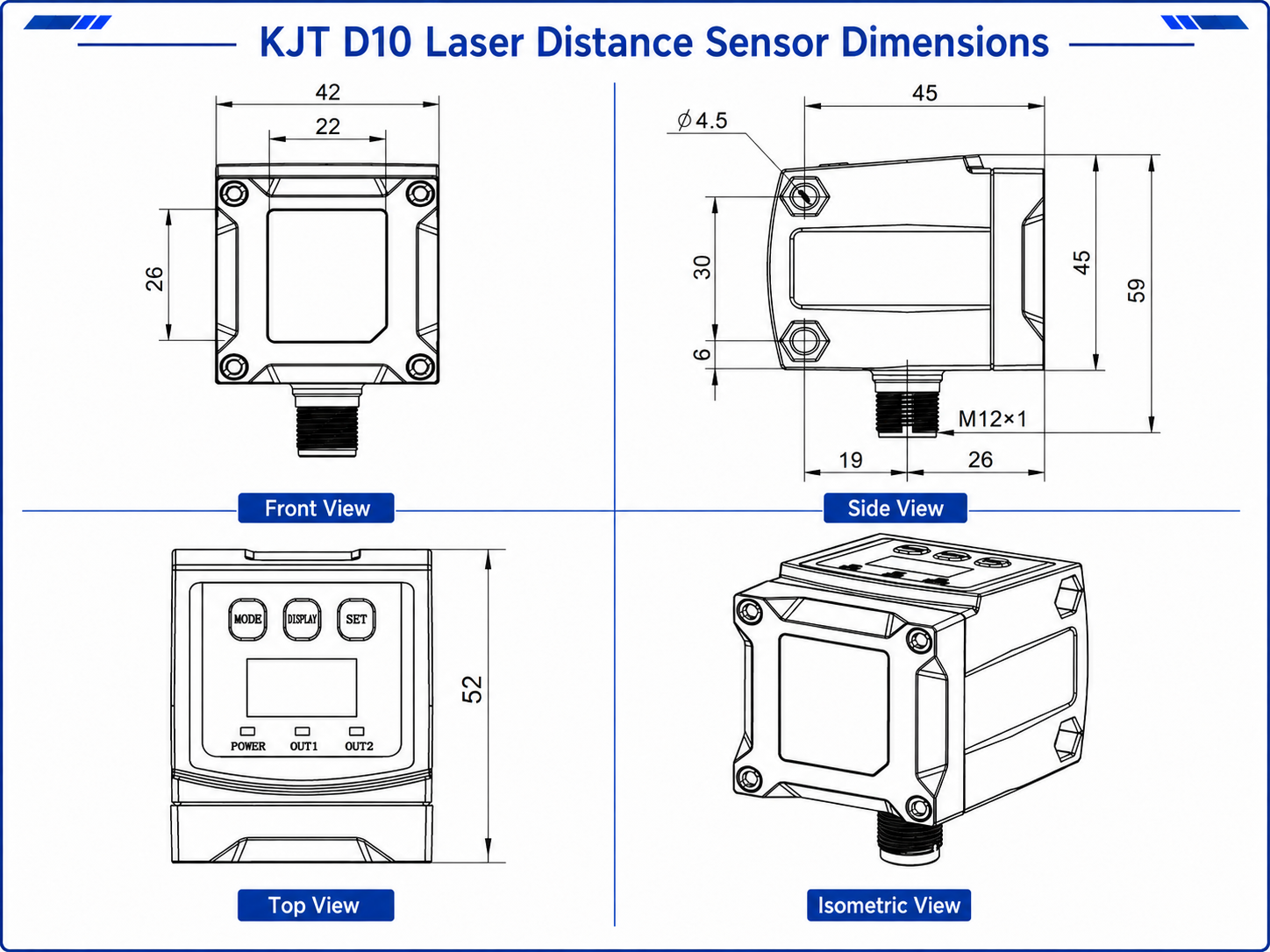

Mechanical Dimensions & Installation
- Front housing width: 42 mm; front window reference width: 22 mm.
- Front detection window height: 26 mm; top display surface height: 52 mm.
- Side body depth: 45 mm; overall side height: 59 mm.
- Mounting hole reference: Ø4.5; side mounting hole spacing: 30 mm.
- Bottom interface specification: M12×1, with reserved installation reference dimensions of 19 mm / 26 mm.
Wiring & Output
Pin Definition & Output Configuration
| Pin No. | Symbol | Wire Color | Function |
|---|---|---|---|
| 1 | L+ | Brown | DC24V |
| 2 | Other | White | Switchable (switching/analog output) |
| 3 | L- | Blue | 0V |
| 4 | C/Q | Black | IO-Link |
| 5 | IN | Gray | Laser switch control |
Supports digital I/O configuration (switching output) and analog/SIO configuration (analog output + switching output). Out 2 (white wire) can be configured as a switching output or analog output via parameter settings or IO-Link.
Push-Pull (PP)
Push-pull output for broad compatibility.
PNP
Active high; suitable for sourcing PLC inputs.
NPN
Active low; suitable for sinking PLC inputs.
Detection Modes
- Standard mode: single-point triggering; output is activated beyond the set distance.
- Datum mode: uses a set surface as the reference to detect relative changes.
- Window mode: output is activated within the upper and lower limits.
- Voltage/current mode: outputs an analog signal with forward/reverse mapping support.
Trigger Conditions
| Standard Mode | Measured value < set value |
|---|---|
| Window Mode | NEAR < measured value < FAR |
| Datum Mode | Measured value < -set value or measured value > +set value |
Configurable Functions
Response time: 1 ms / 5 ms / 10 ms / 50 ms / 100 ms / 500 ms
Output mode: STD / WIND / DATUM / 4-20 mA / 0-10 V
Switching mode: NO normally open / NC normally closed
Delay: OFF / ON-D / OFF-D / ONE
Timer: 1 ms-9999 ms
Hysteresis: reduces output chatter near the threshold
Analog lower/upper limits: A-LOW / A-HIGH
Mapping direction: FWD / REV
Display sleep: OFF / 1MIN / 5MIN / 10MIN
Input mode: DISABLE / ENABLE / ON / OFF
Language setting: Simplified Chinese / English
Initialization and product information display
IO-Link Communication
Supports standard process data and ISDU parameters for on-site parameterization, status reading, and smart maintenance.
Laser Distance Measurement Principle
The emitted beam detects the target distance. After the echo signal is processed by the sensor, the data is uploaded to the PLC/HMI through the IO-Link Master.
IO-Link Specifications
| IO-Link Standard | V1.1.4 |
|---|---|
| Communication Rate | COM3（230.4kbps） |
| Minimum Cycle Time | 0.4ms |
| Process Data Length | Default 6 bytes |
| SmartSensor Profile | Profile ID: 0x0010 / 0x0014; supports FC values 0x8010 / 0x8011 / 0x8012 / 0x8016; CSC 0x800C; PDV 0x800B; SSC 0x800D |
| Common Profile | Profile ID 0x4000; supports additional FC: 0x8101 |
Process Data Format
Supports standard PD input/output formats, including measured values, status bits, SSC1/2 status, and more.
ISDU Data
Supports standard IO-Link parameters, system commands, Smart Sensor Profile, and custom parameters.
Parameterized Maintenance
Covers on-site setup items such as response time, delay settings, and laser mode.
